Manufacturer: Hanwha Vision

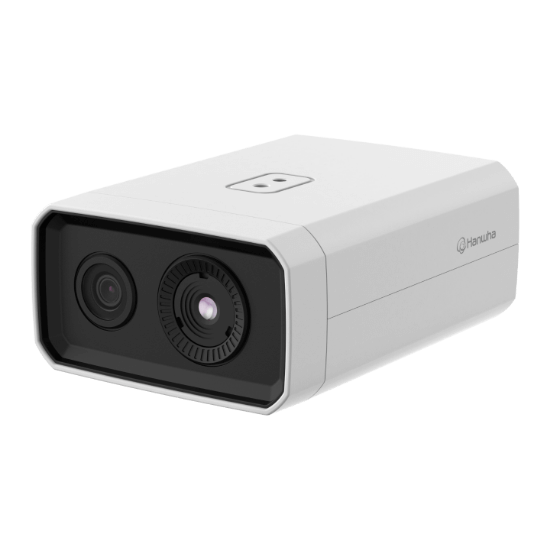

Hanwha Vision (TNM-C3620TDR)

SKU: 212440
MPN: TNM-C3620TDR
(TNM-C3620TDR) is a efficient security device delivering smart analytics compatibility, secure remote access, and flexible placement. It integrates easily into modern networks and.
Call for price
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Product Highlights
TechnologyIP/Network
ComplianceNDAA Compliant
Wisenet T series Bi-spectrum AI Radiometric Camera
  • Thermal: 320 x 240 (uncooled) @ 8fps <50mK (NETD), built-in 4.7mm thermal fixed lens (HFoV: 50°),
  • Visible: 2MP @ 30fps, built-in 4mm fixed lens (HFoV: 87.6°)
  • Triple triple codec H.265/H.264/MJPEG with Wisestream II and WiseStream III (based on AI engine) support
  • WDR 150dB
  • AI object detection (visible): Person/Face, Detection Shot
  • Analytics events based on AI engine (visible): Virtual line (Crossing/ Direction), Virtual area (Loitering/Intrusion/Enter/Exit), Motion detection, Audio detection, Virtual area(Appear/Disappear)
  • Alarm events: Image upload (e-mail/FTP), Notification (e-mail), Recording (edge/NAS), Alarm output, Handover (PTZ preset), Send message by HTTP/ HTTPS/TCP message), Audio clip playback, MQTT (publication)
  • Radiometric: whole FoV area or up 6 user programmable quadrangle ROIs, Temperature detection range from -20°C to 130°C (-4°F to 266°F)
  • FIPS 140-2, Level 2
  • 1x micro SD card (256GB x1)
  • PoE+/12VDC
  • This product is subject to the Thermal agreement



Video
Imaging DeviceUncooled micro bolometer (320x240)
Resolution1280x960, 640x480, 320x240(Original)
Max. FramerateH.265/H.264/MJPEG: Max. 8fps
NETD＜50mK
Pixel Size12㎛
Video OutCVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB : Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio)4.7mm fixed focal
Max. Aperture RatioF1.0
Angular Field of ViewH: 50.0˚, V: 36.4˚, D: 65.3˚ (iFoV: 2.553 mRad )
Min. Object Distance1m(3.28ft)
Focus ControlFixed
Operational
Camera TitleDisplayed up to 17 characters
Digital Image StabilizationSupport(built-in gyro sensor)
Motion Detection8ea, 8point polygonal zones
Privacy Masking24ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
Video RotationFlip, Mirror
AnalyticsDirectional detection, Motion detection, Enter/Exit, Virtual line, Temperature detection
Alarm I/OInput 1ea / Output 2ea
Alarm TriggersAnalytics, Network disconnect, Alarm input, MQTT subscription
Alarm EventsWhen alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset - MQTT: publication
Audio InSelectable(mic in/line in)
Audio OutLine out
Color PalettesWhitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom
Radiometry
Temperature Detect Range-20~+130°C(-4˚F~+266˚F)
Temperature Accuracy±5˚C(≤100˚C), ±20%(>100˚C) * This temperature accuracy is based on testing the minimum object distance (MoD) at room temperature as a reference value.
Temperature Detection6 Quadrangle ROI zones, whole FoV area
AdditionalHybrid palettes, Spot temperature reading
Network
EthernetMetal shielded RJ-45(10/100BASE-T), RJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart CodecWiseStreamⅡ
Video Quality AdjustmentH.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
Bitrate ControlH.264/H.265: CBR or VBR MJPEG: VBR
StreamingUnicast(20 users) / Multicast Multiple streaming(Up to 6 profiles)
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), MQTT
Application Programming InterfaceONVIF Profile S/T/M SUNAPI(HTTP API)
Security
OS / Firmware ProtectEncrypted Firmware, Secure boot, Signed Firmware
User authenticationDigest Authentication
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS(WebSocket Secure)
Access ControlIP-based access control
Data ProtectEncryption Credentials, Encrypt compress for live recording file
AuditAccess / System / Event Log management
Device IDDevice Certificate(Hanwha Private Root CA)
Secure StorageHTPM(Hanwha Trusted Platform Module), SDcard partition encrypt
Security CertificateTPM with FIPS 140-2 level 2
General
Webpage LanguageEnglish, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge StorageMicro SD/SDHC/SDXC 1slot 256GB
Memory4608MB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity-10°C~+55°C(+14°F~+131°F) / Less than 95% RH
Storage Temperature / Humidity-30°C~+60°C(-22°F~+140°F) / Less than 95% RH
Input VoltagePoE+(IEEE802.3at, Class4), 12VDC
Power ConsumptionPoE+: Max. 17.0W, typical 12.5W 12VDC: Max. 14.5W, typical 11.0W
Mechanical
Color / MaterialWhite / Aluminum
RAL CodeRAL9003
Product Dimensions / Weight135(W)x75(H)x188.5(D)mm, (5.31x2.95x7.42"), 1.7kg(3.77lb)
Ceiling Mount (Assy)SBP-142CMW
Wall MountSBP-142WMW
Certifications & Standards
EMCEN 55032:2015/A11:2020 CLASS A EN 50130-4:2011/A1:2014 CLASS A EN 61000-3-2:2014 CLASS A EN 61000-3-3:2013 CLASS A 47 CFR Part 15, Subpart B ANSI C63.4 2014 CLASS A IC Regulation ICES 003 : 2016 ANSI C63.4 2014 CLASS A VCCI CISPR 32: 2016 CLASS A
SafetyUL/CSA 62368-1 KC 62368-1
EnvironmentIEC/EN 63000
