Manufacturer: Hanwha Vision

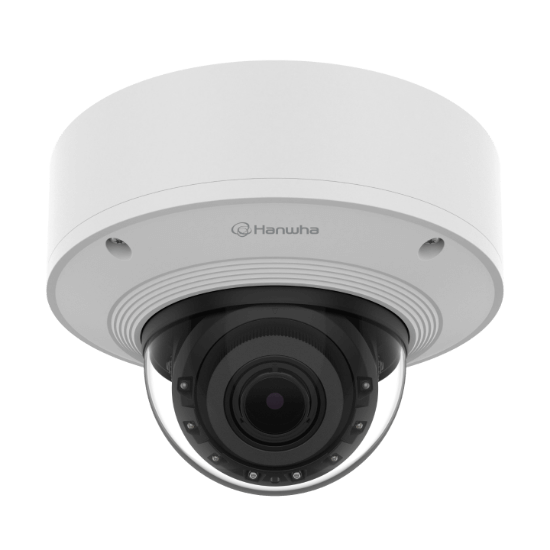

Hanwha Vision (PNV-A6081R-E)

SKU: 212498
MPN: SolidEDGE PNV-A6081R-E
(PNV-A6081R-E) is a robust security device delivering clear imaging, simple network integration, and easy deployment. It integrates easily into modern networks and scales.
Call for price
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Product Highlights
TechnologyIP/Network
ComplianceNDAA Compliant
    • NDAA, FCC & UL compliant
    • PNV-A6081R-E1T (1TB) and PNV-A6081R-E2T (2TB) embedded Solid State Drive (SSD) with WAVE VMS pre-loaded
    • Includes 1-channel WAVE Professional camera license
    • A complete server-less VMS solution
    • Capable of recording up to 5 additional cameras for a total recording solution, up to 6 total cameras (32Mbps total recording throughput)
    • Cloud-managed and accessible using WAVE Sync
    • License-Free Video Analytics based on AI
    • Object detection and classification (Person, Face, Vehicle, License Plate), Attribute, BestShot
    • Virtual line/directional detection, Enter, Exit, Intrusion, loitering, defocus detection, Face mask detection, social distancing detection, audio detection, sound classification, tampering, shock detection, People Counting, Queue Management, Heatmap, Motion detection, PTZ Handover, audio event playback
    • 2MP resolution up to 120fps
    • WiseIR 131.23ft
    • WDR (120dB)
    • 4.38~9.33mm(2.13x) motorized varifocal lens with Simple focus for easy remote adjustments
    • Triple codec H.265/H.264/MJPEG
    • WiseStream III compression technology to save bandwidth & storage
    • USB, analog video output ports for easy installation
    • True D/N
    • Hard-coated dome bubble
    • PoE+(IEEE802.3at type 2, Class4), 12VDC, Power redundancy failover
    • IP66/IP67/IP6K9K, NEMA4X, IK10
    • TPM with FIPS 140-2 level 2, Secure boot, Verify firmware forgery
    • 19.1mm(3/4")(M25) conduit hole, single, double, 4" octagon, 4" square gangbox compatibility
    • Note: to use AI/Analytics on the SolidEDGE or connected cameras, please update the system to: Camera firmware  2.21.03 or later. WAVE build 5.1.2.37996 or later, WiseAI App 1.01.02 (20230127) or later.



Video
Imaging Device1/2" CMOS
Resolution1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. FramerateH.265/H.264: Max. 120fps/100fps/60fps/50fps/30fps/25fps(120Hz/100Hz/60Hz/50Hz/30Hz/25Hz) MJPEG: Max. 30fps
NETDNone
Pixel SizeNone
Min. IlluminationColor: 0.008Lux(F1.3, 1/30sec, 30IRE) BW: 0.0008Lux(F1.3, 1/30sec, 30IRE), 0Lux(IR LED on), 30/25fps Color: 0.016Lux(F1.3, 1/60sec, 30IRE) BW: 0.0016Lux(F1.3, 1/60sec, 30IRE), 0Lux(IR LED on), 60/50fps Color: 0.032Lux(F1.3, 1/120sec,30IRE) BW: 0.0032Lux(F1.3, 1/120sec, 30IRE), 0Lux(IR LED on), 120/100fps
Video OutCVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Video Transmission DistanceNone
Lens
Focal Length (Zoom Ratio)4.38~9.33mm(2.13x) motorized varifocal
Max. Aperture RatioF1.3(Wide)~F2.15(Tele)
Angular Field of ViewH: 104°(Wide)~44°(Tele) V: 55°(Wide)~24°(Tele) D: 124°(Wide)~51°(Tele)
Min. Object Distance0.5m(1.64ft)
Focus ControlSimple focus
Lens TypeP-iris(IR corrected)
Mount TypeNone
Optional LensNone
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range0°~360° / -45°~85° / 0°~355°
Pan RangeNone
Pan SpeedNone
Tilt RangeNone
Tilt SpeedNone
Rotate RangeNone
SequenceNone
Preset AccuracyNone
Operational
Camera TitleDisplayed up to 85 characters
Direction IndicatorNone
Day & NightAuto(ICR)
Backlight CompensationBLC, WDR, SSDR
Wide Dynamic Range120dB
Digital Noise ReductionWiseNR, SSNRⅤ
Digital Image StabilizationNone
DefogNone
Motion Detection8ea, 8point Polygonal zones
Privacy Masking6ea, Rectangular zones - Color: Gray/Black/White
Gain ControlLow / Middle / High
White BalanceATW / AWC / Manual / Indoor / Outdoor
LDCSupport
Electronic Shutter SpeedMinimum / Maximum / Prefer / Anti flicker(1/5~1/12,000sec)
Digital PTZSupport(preset/group)
Video RotationFlip, Mirror, Hallway view(90°/270°)
Serial InterfaceNone
Alarm I/OInput 1ea / Output 1ea
Alarm TriggersNetwork disconnect, Alarm input, App event, Time schedule, MQTT subscription
Alarm EventsWhen alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication
Audio InSelectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio OutLine out, Max.output level: 1Vrms
IR Viewable LengthWiseIR 40m(131.23ft)
IR Illuminator (Optional)None
Water RemovalNone
Auto TrackingNone
Coaxial ProtocolNone
Color PalettesNone
Radiometry
Temperature Detect RangeNone
Temperature AccuracyNone
Temperature DetectionNone
AdditionalNone
Network
EthernetMetal shielded RJ-45(10/100/1000BASE-T)
Video CompressionH.265/H.264: Main/High, MJPEG
Audio CompressionG.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart CodecManual(5ea area), WiseStreamⅡ
Video Quality AdjustmentH.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
Bitrate ControlH.264/H.265: CBR or VBR MJPEG: VBR
StreamingUnicast(6 users) / Multicast Multiple streaming(Up to 5 profiles)
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT
SecurityTPM 2.0(FIPS 140-2 level 2) HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Vision Root CA, pre-installed) Secure Boot, Verify firmware forgery
SIP support (VoIP, Peer-to-peer, SIP/PBX integration)None
Application Programming InterfaceONVIF Profile S/T/M SUNAPI(HTTP API)
General
Webpage LanguageEnglish, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
Web ViewerNone
Edge Storage1TB / 2TB SSD included (WAVE pre-installed) Possible to register the maximum number of camera - up to 6 camera(Host + 5 camera) - Total bandwidth: up to 33Mbps * AI Mode can not currently be enabled when recording to the SSD
Memory4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity-30°C~+55°C(-22°F~+131°F) / 0~95%RH(non-condensing) * Start up should be done at above -20°C Humidity control /w AIR vent
Storage Temperature / Humidity-50°C~+60°C(-58°F~+140°F) / 0~90% RH
CertificationIP66/IP67/IP6K9K, NEMA4X, IK10
Input VoltagePoE+(IEEE802.3at type 2, Class4), 12VDC
Power ConsumptionPoE+: Max 19.2W, typical 14.4W 12VDC: Max 17.5W, typical 12.7W Power redundancy failover
Mechanical
Color / MaterialWhite / Aluminum Hard-coated dome bubble
RAL CodeRAL9003
Product Dimensions / Weightø180x130mm(ø7.09x5.12"), 1900g(4.19 lb)
Compatible Conduit hole / Gangbox19.1mm(3/4")(M25) single, double, 4" octagon, 4" square
Hanging Mount (Dome)SBP-187HMW
Skin Cover (Dome)None
Weather Cap (Dome)include
Power ModuleNone
BackboxNone
Certifications & Standards
NetworkNone
EMCFCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471
EnvironmentIEC/EN 63000 IEC/EN 60529 IP66/IP67, ISO 20653 IP6K9K, IEC/EN 62262 IK10 NEMA 250 type 4X
VideoNone
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide: 30.0m(98.43ft) / Tele: 95.0m(311.82ft)
Observe (63PPM/ 19PPF)Wide: 12.0m(39.37ft) / Tele: 38.0m(124.73ft)
Recognize (125PPM/ 38PPF)Wide: 6.0m(19.69ft) / Tele: 19.0m(62.36ft)
Identify (250PPM/ 76PPF)Wide: 3.0m(9.84ft) / Tele: 9.5m(31.18ft)
