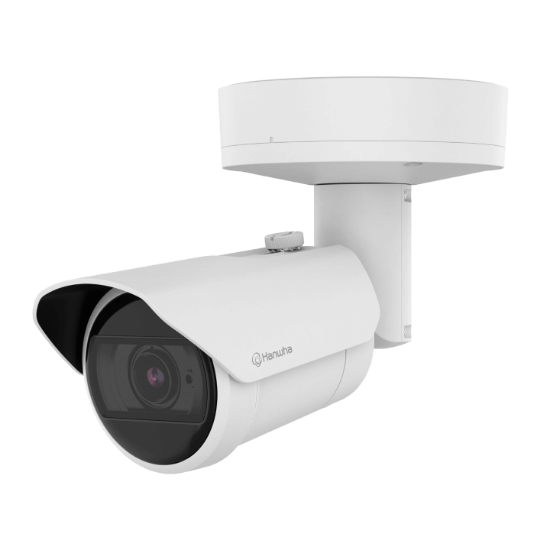

Hanwha Vision 8MP Outdoor Bullet IP Security Camera with 4.4-9.3mm Lens and Built-In IR (XNO-A9084R)

1 review(s)
SKU: 212408
MPN: XNO-A9084R
8MP Outdoor Bullet IP Security Camera with 4.4-9.3mm Lens and Built-In IR (XNO-A9084R) is a robust bullet network camera delivering easy deployment, dependable.
$1,345.99
$2,254.99

Buy more, save more
10+ units
-5% $1,278.69
30+ units
-6% $1,265.23
50+ Lowest price
-8% $1,238.31
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Free shipping
Product Highlights
Resolution4K 8MP
TechnologyIP/Network
ComplianceNDAA Compliant
  • 8MP WN9 Network AI IR Outdoor Vandal Bullet Camera
  • Max Resolution 3840x2160@30FPS
  • [email protected] (Color), 0Lux (B/W IR LED On)
  • 4.4~9.3mm(2.1x)
  • FoV H:113°~47°
  • Motorized Varifocal Lens
  • Hard-Coated Window
  • H.265/H.264/MJPEG Codec
  • AI-Based WiseStream
  • IR Viewable Length 40m (131.2ft)
  • USB Port for Easy Installation
  • WiseNR Ⅱ (using AI engine)
  • Day & Night (ICR)
  • extremeWDR (120dB)
  • DIS with Built-In Gyro Sensor
  • Handover
  • Dynamic Privacy Mask
  • AI Engine Based Analytics: Motion & Object Detection, Line Crossing, IVA Area, Slip & Fall, Sound Classification
  • Object Detection: Person/Face/Vehicle/License Plate
  • Object Attributes: Person (Gender, Top/Bottom Clothing Color, Bag), Face (Age, Gender, Mask, Glasses), Vehicle (Type, Color)
  • BestShot
  • Analytics Events: Defocus, Motion, Tampering, Fog, Audio & Shock Detection
  • AI Based Business Intelligence: People/Vehicle/Crowd Counting, Queue Management, Heatmap
  • IP66/IP67, IK10, NEMA 4X, NEMA-TS 2(2.2.7.2-8, 2.2.8, 2.2.9)
  • Operating Temp: -40°C~+60°C (-40°F~+140°F)
  • Built-In MicroSD Card Slot (x1)
  • Power: PoE
  • Metal shielded RJ-45
TAA compliant model available: XNO-A9084R/KEX *Alarm I/O and audio is supported through an optional cable (SPP-C7400)

Video
Imaging Device1/1.8” CMOS
Resolution3840x2160, 3328x1872, 3072x1728, 2592x1944, 2688x1512, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180
Max. FramerateH.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps(@8MP Max. 5fps)
Min. IlluminationColor: 0.04Lux(F1.3, 1/30sec, 30IRE) BW: 0.004Lux(F1.3, 1/30sec, 30IRE), 0Lux(IR LED on)
Video OutUSB: Micro USB Type C for installation
Lens
Focal Length (Zoom Ratio)4.4~9.3mm(2.1x) motorized varifocal
Max. Aperture RatioF1.3(Wide)~F2.15(Tele)
Angular Field of ViewH: 113°(Wide)~47°(Tele) V: 58°(Wide)~26°(Tele) D: 138°(Wide)~54°(Tele)
Min. Object Distance0.5m(1.64ft)
Focus ControlSimple focus, manual
Lens TypeP-iris(IR corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range0°~350° / 0°~90° / 0°~350°
Operational
Camera TitleDisplayed up to 85 characters
Day & NightAuto(ICR)
Backlight CompensationBLC, HLC, WDR, SSDR
Wide Dynamic Range120dB
Digital Noise ReductionSSNRⅤ, WiseNRⅡ(Based on AI engine)
Digital Image StabilizationSupport
DefogSupport
Motion Detection8ea, 8point polygonal zones
Privacy Masking32ea, 8point polygonal zones - Color: gray/green/red/blue/black/white/purple/yellow - Mosaic Dynamic Privacy Mask(Based on AI engine) - Color: gray/green/red/blue/black/white/purple/yellow - Mosaic
Gain ControlOff / Max Gain / Manual
White BalanceATW / NarrowATW / AWC / Manual / Indoor / Outdoor
LDCSupport(Fill/Stretch mode)
Electronic Shutter SpeedMinimum / Maximum / Anti flicker(2~1/30,000sec) Prefer shutter control(Based on AI engine)
Video RotationFlip, mirror, hallway view(90°/270°)
AnalyticsClassified object type: Person/Face/Vehicle(Type: car/bus/truck/motorcycle/bicycle)/License plate Attributes: Person(Gender, Clothing top/bottom color, Bag), Face(Age, Gender, Mask, Glasses), Vehicle(Type: car/bus/truck/motorcycle/bicycle, Color) Support BestShot Analytics events based on AI engine - Motion detection, Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear), Slip & fall detection, Face mask detection, Social distancing detection Analytics events - Defocus detection, Tampering, Shock detection, Audio detection
Business IntelligenceBased on AI engine: People/Vehicle/Crowd counting, Queue management, Heatmap
Alarm I/O2 configurable I/O ports *Support extra alarm I/O via optional I/O box
Alarm TriggersAnalytics, Network disconnection, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption
Alarm EventsWhen alarm trigger occurred - File upload(image): e-mail/FTP/SFTP - File upload(video clip): FTP/SFTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback(WAV, MP3) - MQTT: publication
Audio InSelectable(mic in/line in)
Audio OutLine out
Light TypeIR LED
Light Viewable LengthWiseIR 40m(131.23ft)
IR Wavelength850nm
Network
EthernetMetal shielded RJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High MJPEG
Audio CompressionG.711(PCM): 8kHz(64Kbps) G.726(ADPCM): 8kHz(16/24/32/40Kbps) AAC-LC: 16kHz(48Kbps) OPUS: 48kHz(64Kbps)
Smart CodecWiseStream(Based on AI engine)
Bitrate ControlH.264/H.265: CBR or VBR MJPEG: VBR
StreamingUnicast(20 users) / Multicast Multiple streaming(Up to 5 profiles, 3 virtual channel support)
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP(StartTLS), ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), CDP, MQTT, Syslog
Application Programming InterfaceONVIF Profile S/G/T/M SUNAPI(HTTP API) Hanwha Vision Open Platform
Security
OS / Firmware ProtectEncrypted Firmware, Secure boot, Signed Firmware
User authenticationDigest Authentication, Prevent brute-force attack
Network authentication802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure CommunicationHTTPS, SRTP, WSS(Websocket secure)
Access ControlIP-based access control, MAC-based access control, Auto logout
Data ProtectEncryption Credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice Certificate(Hanwha vision Root CA)
Secure StorageSecure element, SDcard partition encrypt(AES-256)
Supply Chain SecuritySBOM
Security CertificateETSI EN 303 645, Secure element(FIPS 140-3 level3, CC EAL6+)
General
Webpage LanguageEnglish, Korean, Simplified Chinese, Traditional Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge StorageMicro SD/SDHC/SDXC 1slot 1TB
Memory4GB RAM, 8GB eMMC
Environmental & Electrical
Operating Temperature / Humidity-40°C~+60°C(-40°F~+140°F) +74°C(+165°F)(MAX) based on NEMA-TS 2(2.2.7) * Start up should be done at above -30°C 0~100%RH(Condensing) Humidity control with AIR vent
Storage Temperature / Humidity-50°C~+60°C(-58°F~+140°F) / 0~90% RH
EPA(Effective Projected Area)0.02㎡
CertificationIP66/IP67, NEMA4X, IK10, NEMA-TS 2(2.2.7.2-8, 2.2.8, 2.2.9)
Input VoltagePoE(IEEE802.3af, Class3)
Power ConsumptionPoE: Max. 11.2W, typical 8.4W Support Wisepower - Power monitoring(Max./Current/Avg.) - ECO mode
Mechanical
Color / MaterialWhite / Aluminum Hard-coated window
Material ManagementRoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018) REACH(Regulation (EC) No. 1907/2006) Conflict mineral policy(Section 1502 of US Dodd Frank Act)
RAL CodeRAL9003
Product Dimensions / Weightø93.4x276.6mm(3.68x10.89"), 1,630g(3.59lb)
Compatible Conduit hole / GangboxSingle, double, 4" octagon, 4" square
Certifications & Standards
EMCFCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471
EnvironmentIEC/EN 63000 IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA-TS 2(2.2.7.2-8, 2.2.8, 2.2.9) IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
Compatible Models
Hanging AdaptorSBP-160HMW1
Back BoxIncluded
Ceiling Mount (Assy)SBP-150CMI, SBP-300CMI, SBP-300CMW1, SBP-900CMW, SBP-300CMTW, SBP-300CMTS
Ceiling Mount (Single Unit)SBP-180CMB, SBP-140CMB, SBP-180CMS, SBP-900CMP, SBP-300CMP, SBP-150CMP, SBP-C15P, SBP-C15H
Wall MountSBP-160WMW1, SBP-400WMW, SBP-250WMW, SBP-300WMW, SBP-300WMW1
Pole MountSBD-180PMW, SBP-300PMW2
Corner MountSBP-156KMW, SBP-300KMW1
Parapet MountSBP-156LMW1, SBP-300LMW
CabinetSBP-150NBW, SBP-300NBW
Conduit AdaptorSBP-060BA
Interface BoxSPM-4210
Other Compatible ModelsSPP-C7400, SBP-115PFA
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide: 50.8m(166.77ft) / Tele: 176.6m(579.49ft)
Observe (63PPM/ 19PPF)Wide: 20.3m(66.71ft) / Tele: 70.7m(231.80ft)
Recognize (125PPM/ 38PPF)Wide: 10.2m(33.35ft) / Tele: 35.3m(115.90ft)
Identify (250PPM/ 76PPF)Wide: 5.1m(16.68ft) / Tele: 17.7m(57.95ft)
Ver
Ver202505
