Manufacturer: Hanwha Vision

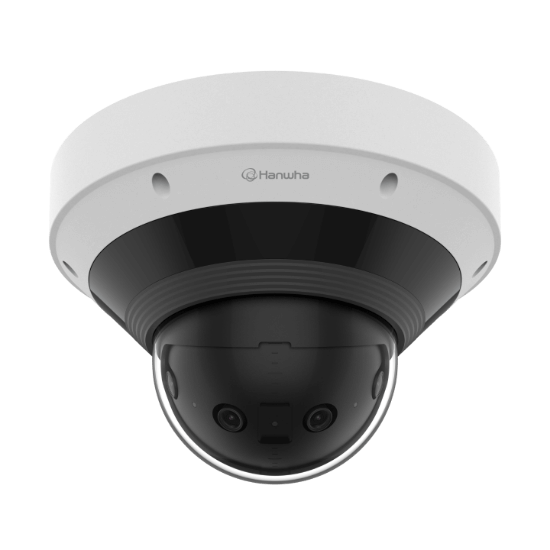

Hanwha Vision 8MP 4K Night Vision Outdoor Dome Panoramic IP Security Camera with AI and 4x 2.8mm Fixed Lens (PNM-C9022RV)

SKU: 212504
MPN: PNM-C9022RV
8MP 4K Night Vision Outdoor Dome Panoramic IP Security Camera with AI and 4x 2.8mm Fixed Lens (PNM-C9022RV) is a versatile dome network.
$1,784.99
$2,986.99

Buy more, save more
10+ units
-5% $1,695.74
30+ units
-6% $1,677.89
50+ Lowest price
-8% $1,642.19
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Free shipping
Product Highlights
Resolution4K 8MP
TechnologyIP/Network
ComplianceNDAA Compliant
  • 8MP 5120X1568 resolution
  • 209⁰ panoramic stitching image
  • IR viewable length Maximum 20m (65.6ft), WiseIR
  • 20fps at all resolutions (H.265/H.264/MJPEG)
  • H.265, H.264, MJPEG codec, WiseStream III supported
  • WiseNRⅡ(Based on AI engine)
  • Analytics events based on AI engine : Object classification (Person/Vehicle), Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit)
  • Standard analytic events: Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear)
  • micro SD/SDHC/SDXC 2 slots, PoE+/12v DC, IP66, IK10
  • Hard-coated dome bubble
  • TPM 2.0 with FIPS 140-2, Secure OS/Boot/Storage, Verify firmware forgery
  • USB connector for easy setup with optional Wi-Fi adapter
TAA compliant model: PNM-C9022RV/KEX

Video
Imaging Device1/2.8" CMOS (x4)
Resolution5120X1568, 3648X1152, 2560X784, 1280X392
Max. FramerateH.265/H.264: Max. 20fps(60Hz/50Hz) MJPEG: Max. 20fps(60Hz/50Hz)
Min. IlluminationColor: 0.1Lux(F2.0, 1/30sec) BW: 0.01Lux(F2.0, 1/30sec), 0Lux(IR LED on)
Video OutUSB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio)2.8mm fixed focal (x4)
Max. Aperture RatioF2.0
Angular Field of ViewH: 209°, V: 60°
Min. Object Distance5m(16.4ft)
Focus ControlFixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range0°~360° / 0°~65° / -
Operational
Camera TitleDisplayed up to 85 characters
Day & NightAuto(ICR)
Backlight CompensationBLC, WDR, SSDR
Wide Dynamic Range120dB
Digital Noise ReductionWiseNRⅡ(Based on AI engine), SSNRⅤ
Motion Detection8ea, 8point Polygonal zones
Privacy Masking10ea, Rectangular zones - Color : Gray, Green, Red, Blue, Black, White
Gain ControlLow / Middle / High
White BalanceATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter SpeedMinimum / Maximum / Prefer / Anti flicker (2~1/12,000sec) Auto prefer shutter control(Based on AI engine)
Video RotationFlip, Mirror
AnalyticsClassified object type : Person/Vehicle Attributes : Not support Support BestShot Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) Analytics events - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear)
Alarm I/O2 configurable I/O ports
Alarm TriggersAnalytics, Network disconnect, Alarm input, App event, Time schedule
Alarm EventsWhen alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Audio clip playback
Audio InSelectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio OutLine out, Max.output level: 1Vrms
IR Viewable LengthWiseIR 20m(65.62ft) 4 individual zones with Automatic/Manual level adjustment
Network
EthernetMetal shielded RJ-45(10/100/1000BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart CodecManual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine)
Bitrate ControlH.264/H.265: CBR or VBR MJPEG: VBR
StreamingUnicast(20 users) / Multicast Multiple streaming(Up to 3 profiles, 2 virtual channel support)
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
SecurityHTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate Secure OS/Boot/Storage, Verify firmware forgery TPM 2.0 with FIPS 140-2 level2
Application Programming InterfaceONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform
General
Webpage LanguageEnglish, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
Edge StorageMicro SD/SDHC/SDXC 2slot Max. 1TB (512GB * 2)
Memory4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity-40°C ~ +55°C(-40°F ~ +131°F) / 0 ~ 95% RH(non-condensing)
Storage Temperature / Humidity-30°C ~ +60°C(-22°F ~ +140°F)/ 0~90% RH
Input VoltagePoE+(IEEE802.3at, Class4), 12VDC
Power ConsumptionPoE+: Max 24.5W, typical 11.3W 12VDC: Max 22.0W, typical 10.4W Power redundancy failover
Mechanical
Color / MaterialWhite / Aluminum
RAL CodeRAL9003
Product Dimensions / WeightØ253x170mm(9.96"x6.69"), 2900g(6.39lb)
Compatible Conduit hole / Gangbox3/4"(M25) / Single, Double, 4"Octagon, Square
Hanging Mount (Dome)SBP-276HMW
Certifications & Standards
EMCFCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471
EnvironmentIEC/EN 63000 IEC/EN 60529 IP66, IEC/EN 62262 IK10 NEMA 250 type 4X
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)52.2m(171.25ft)
Observe (63PPM/ 19PPF)20.9m(68.50ft)
Recognize (125PPM/ 38PPF)10.4m(34.25ft)
Identify (250PPM/ 76PPF)5.2m(17.13ft)
