Manufacturer: Hanwha Vision

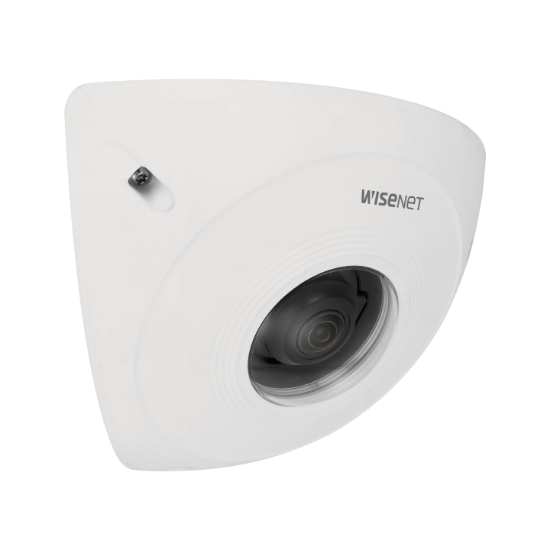

Hanwha Vision 5MP Outdoor Corner IP Security Camera, 2.3mm Fixed Lens (TNV-8011C)

SKU: 212551
MPN: TNV-8011C
5MP Outdoor Corner IP Security Camera, 2.3mm Fixed Lens (TNV-8011C) is a feature‑rich security device delivering secure remote access, flexible placement, and intuitive.
$760.99
$1,275.99

Buy more, save more
10+ units
-5% $722.94
30+ units
-6% $715.33
50+ Lowest price
-8% $700.11
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Free shipping
Product Highlights
Resolution5MP
TechnologyIP/Network
ComplianceNDAA Compliant
  • Anti-ligature design for corrections and behavioral health facilities
  • 5 Megapixel (2592 x 1944) resolution
  • 30fps @ all resolutions (H.265/H.264)
  • 0.1 lux @ F2.3 (Color), 0.02 lux @ F2.3 (B/W)
  • Built-in 2.3mm fixed lens
  • H.265, H.264, MJPEG triple codec support, Multiple streaming
  • Day & Night, WDR (120dB)
  • Video & audio analytics
  • microSD/SDHC/SDXC memory slot (Maximum 128GB)
  • Hallway view, WiseStream II support
  • PoE, IK10
TAA compliant model: TNV-8011C/KEX

Video
Imaging Device1/2.8" CMOS
Resolution2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. FramerateH.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps (60Hz/50Hz)
Min. IlluminationColor: 0.1 lux (F2.3, 1/30sec) B/W: 0.02 lux (F2.3, 1/30sec)
Video OutCVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio)2.3mm fixed focal
Max. Aperture RatioF2.3
Angular Field of ViewH: 131° / V: 93.4° / D: 174°
Focus ControlFixed
Operational
Camera TitleDisplayed up to 85 characters
Day & NightAuto(ICR)
Backlight CompensationBLC, WDR, SSDR
Wide Dynamic Range120dB
Digital Noise ReductionSSNR
Digital Image StabilizationSupport
DefogSupport
Motion Detection4ea, polygonal zones
Privacy Masking6ea, rectangular zones
Gain ControlLow / Middle / High
White BalanceATW / AWC / Manual / Indoor / Outdoor(include Mercury & Sodium)
LDCSupport
Electronic Shutter SpeedMinimum / Maximum / Anti flicker (2~1/12,000sec)
Video RotationFlip, Mirror, Hallway view(90°/270°)
AnalyticsDefocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line, Audio detection
Alarm I/OInput 1ea / Output 1ea
Alarm TriggersAnalytics, Network disconnect, Alarm input
Alarm EventsFile upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output
Audio InSelectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio OutLine out, Max.output level: 1Vrms
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711 u-law /G.726 selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Smart CodecManual(5ea area), WiseStreamⅡ
Bitrate ControlH.264/H.265: CBR or VBR MJPEG: VBR
StreamingUnicast (6 users) / Multicast Multiple streaming (Up to 3 profiles)
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, sRTP, ONVIF
SecurityHTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP) Device certificate(Hanwha Techwin Root CA)
Application Programming InterfaceSUNAPI(HTTP API) Wisenet open platform
General
Webpage LanguageEnglish, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge StorageMicro SD/SDHC/SDXC 1slot 128GB
Memory512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity-10℃~+55℃(+14℉~+131℉) / Less than 95% RH
Storage Temperature / Humidity-50℃~+60℃(-58℉~+140℉) / Less than 95% RH
CertificationIP66, IP6K9K, IK10
Input VoltagePoE(IEEE802.3af, Class2)
Power ConsumptionPoE: Max 6.49W, typical 4.6W,
Mechanical
Color / MaterialWhite / Aluminium
RAL CodeRAL9003
Product Dimensions / Weight170(W)x165(H)x78.8(D)mm(6.69x6.49x3.10") / 830g(1.83lb)
Skin CoverSBC-170C, SBC-170CB, SBC-170CW
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)23.6m(77.51ft)
Observe (63PPM/ 19PPF)9.4m(31.00ft)
Recognize (125PPM/ 38PPF)4.7m(15.50ft)
Identify (250PPM/ 76PPF)2.4m(7.75ft)
