Manufacturer: Hanwha Vision

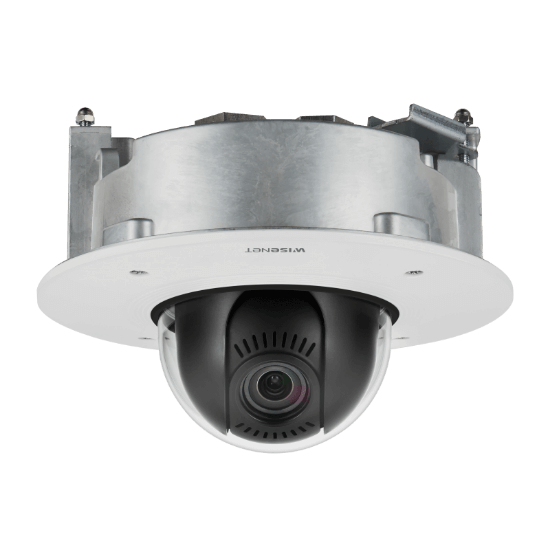

Hanwha Vision 5MP H.265 Dome IP Security Camera (XND-8081FZ)

SKU: 212750
MPN: XND-8081FZ
5MP H.265 Dome IP Security Camera (XND-8081FZ) is a efficient dome network camera delivering clear imaging, simple network integration, and easy deployment. It.
$1,392.99
$2,334.99

Buy more, save more
10+ units
-5% $1,323.34
30+ units
-6% $1,309.41
50+ Lowest price
-8% $1,281.55
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Free shipping
Product Highlights
Resolution5MP
TechnologyIP/Network
ComplianceNDAA Compliant
  • 5 megapixel resolution
  • 3.6~9.4mm (2.6x) motorized varifocal lens with PTRZ
  • 30fps@all resolutions (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, multiple streaming
  • Day & Night (ICR), WDR (120dB), Defog
  • Shock detection, Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
  • Motion detection, Handover, Audio event playback
  • Dual SD/SDHC/SDXC memory slots (Max. 512GB)
  • Hallway view, WiseStream II support, IP52, plenum-rated
  • LDC support (Lens Distortion Correction)
  • PoE / 12V DC, Bi-directional audio support
  • White camera cover to blend in with ceiling
  • Weathercap included

Video
Imaging Device1/1.8" 6MP CMOS
Effective Pixels2616(H)x1976(V)
Min. IlluminationColor: 0.07Lux(F1.2, 1/30sec) BW: 0.007Lux (F1.2, 1/30sec)
Video OutUSB: Micro USB type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio)3.6~9.4mm(2.6x) motorized varifocal
Max. Aperture RatioF1.2(Wide) ~ F2.4(Tele)
Angular Field of ViewH: 102.5°(Wide)~38.7°(Tele) / V: 74.2°(Wide)~29.0°(Tele) / D: 135.5°(Wide)~48.6°(Tele)
Min. Object Distance0.5m(1.64ft)
Focus ControlSimple focus
Lens TypeDC auto iris, P iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangeRemote adjustment (Max. 200cycles) ±175˚ / 0~85˚ / ±175˚
Operational
Camera TitleDisplayed up to 85 characters
Day & NightAuto(ICR)
Backlight Compensations
Wide Dynamic Range120dB
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport
DefogSupport
Motion Detection8ea, 8point polygonal zones
Privacy Masking32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
Gain ControlLow / Middle / High
White BalanceATW / AWC / Manual / Indoor / Outdoor
LDCSupport
Electronic Shutter SpeedMinimum / Maximum / Anti flicker (2~1/12,000sec)
Video RotationFlip, Mirror, Hallway view(90˚/270˚)
AnalyticsDefocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
Business IntelligencePeople counting, Queue management, Heatmap
Alarm I/OInput 1ea / Output 1ea
Alarm TriggersAnalytics, Network disconnect, Alarm input
Alarm EventsFile upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover Audio playback
Audio InSelectable(mic in/line in), Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio OutLine out, Max.output level: 1Vrms
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Resolution2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. FramerateH.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Smart CodecManual(5ea area), WiseStreamⅡ
Bitrate ControlH.264/H.265: CBR or VBR MJPEG: VBR
StreamingUnicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Audio CompressionG.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
SecurityHTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Edge StorageMicro SD/SDHC/SDXC 2slot 512GB
Application Programming InterfaceONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
Web ViewerSupported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explorer 11, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari(Mac OS X only)
Memory1024MB RAM, 256MB Flash
Environmental
Operating Temperature / Humidity-25°C ~ +60°C (-13°F ~ +140°F) / Less than 90% RH
Storage Temperature / Humidity-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
CertificationIP52
Electrical
Input VoltagePoE(IEEE802.3af, Class3), 12VDC
Power ConsumptionPoE: Max 11W, typical 5.4W 12VDC: Max 9W, typical 3.75W
Mechanical
Color / MaterialWhite / Aluminum(Plenum)
RAL CodeRAL9003
Product dimensions / weightØ205x155mm(Ø8.07x6.10") / 1850kg(4.08 lb)
