Manufacturer: Hanwha Vision

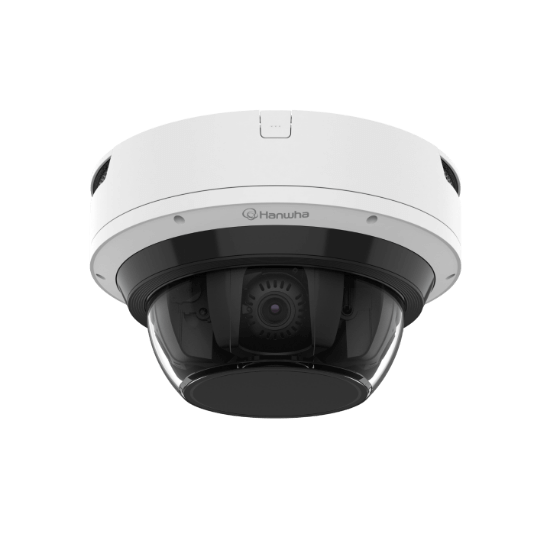

Hanwha Vision 4x8MP Outdoor Multi-Directional Dome IP Security Camera with 4.38-9.33mm and Built-In IR (PNM-C32084RQZ)

SKU: 212426
MPN: PNM-C32084RQZ
4x8MP Outdoor Multi-Directional Dome IP Security Camera with 4.38-9.33mm and Built-In IR (PNM-C32084RQZ) is a professional‑grade multi-sensor network camera delivering clear imaging, simple.
$4,872.99
$8,156.99

Buy more, save more
10+ units
-5% $4,629.34
30+ units
-6% $4,580.61
50+ Lowest price
-8% $4,483.15
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Free shipping
Product Highlights
Resolution4K 8MP
TechnologyIP/Network
ComplianceNDAA Compliant

  • 360° Analytics events: Defocus detection, Motion detection, Tampering, Audio detection, Sound classification
  • AI based WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ
  • Supports hallway mode
  • Max. 20fps(@8MP Max. 5fps)
  • Next level cybersecurity (TPM 2.0 with FIPS 140-2 level2)
  • Reinforced durability (IP66, IK10, NEMA4X)
  Supported Modules:
  • Supported Modules: NVIDIA Jetson Orin Nano 4GB/8GB, Orin NX 8GB/16GB
  • Storage: 2 x PCIe M.2 NVMe SSD slots

Video
Imaging Device1/1.8" CMOS x 4CH
Resolution3840x2160, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. Framerate[AI On] H.265/H.264: Max. 15fps/15fps(60Hz/50Hz) MJPEG: Max. 15fps/15fps(@8MP Max. 5fps) [AI Off] H.265/H.264: Max. 20fps/20fps(60Hz/50Hz) MJPEG: Max. 20fps/20fps(@8MP Max. 5fps)
Min. IlluminationColor: 0.07Lux(F1.3, 1/30sec, 30IRE) BW: 0Lux(IR LED on)
Lens
Focal Length (Zoom Ratio)4.38~9.33mm(2.13x) motorized varifocal
Max. Aperture RatioF1.3(Wide)~F2.15(Tele)
Angular Field of ViewH: 113°(Wide)~47°(Tele) V: 58°(Wide)~26°(Tele) D: 138°(Wide)~54°(Tele)
Min. Object Distance1.3m(4.27ft)
Focus ControlSimple focus
Lens TypeP-Iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangeRemote adjustment(Max. 200cycles) 0°~360° / 30°~90° / 0°~90°
Operational
Camera TitleDisplayed up to 85 characters
Day & NightAuto(ICR)
Backlight CompensationBLC, WDR, SSDR
Wide Dynamic Range120dB
Digital Noise ReductionSSNRⅤ, WiseNRⅡ(Based on AI engine)
DefogSupport
Motion Detection8ea, 8point Polygonal zones
Privacy Masking6ea, 4point quadrangle zones - Color: Gray/Black/White
Gain ControlLow / Middle / High
White BalanceATW / AWC / Manual / Indoor / Outdoor
LDCSupport
Electronic Shutter SpeedMinimum / Maximum / prefer shutter / Anti flicker(1/5~1/12,000sec) Prefer shutter control based on AI engine
Video RotationFlip, Mirror, Hallway view(90°/270°) - each CH separately
AnalyticsClassified object type: Person/Face/Vehicle/License plate Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle, Color), Person (clothing color) Support BestShot Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) Analytics events - Defocus detection, Motion detection, Tampering, Virtual area (Appear/Disappear) * Audio detection, Sound classification(with NW I/O box SPM-4210)
Alarm I/O2 configurable I/O ports * Support Alarm via optional SPM-4210 I/O box
Alarm TriggersAnalytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription, Tampering
Alarm EventsWhen alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - MQTT: publication
Audio In* Support Audio via optional SPM-4210 I/O box
Audio Out* Support Audio via optional SPM-4210 I/O box
Light TypeIR LED
IR Viewable LengthWiseIR 25m(82.02ft)
IR Wavelength850nm
Network
EthernetMetal shielded RJ-45(10/100/1000BASE-T)
Video CompressionH.265/H.264: Main/High, MJPEG
Smart CodecManual(5ea area), WiseStreamⅢ
Video Quality AdjustmentH.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
Bitrate ControlH.264/H.265: CBR or VBR MJPEG: VBR
StreamingUnicast(10 users) / Multicast Multiple streaming(Up to 3 profiles per CH)
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Application Programming InterfaceONVIF Profile S/T/M SUNAPI(HTTP API) Hanwha vision open platform
Security
OS / Firmware ProtectEncrypted Firmware, Secure boot, Signed Firmware
User authenticationDigest Authenticaton
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS(WebSocket Secure)
Access ControlIP-based access control
Data ProtectEncryption Credentials, Encrypt compress for live recording file
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageTPM, SDcard partition encrypt
Security CertificateTPM with FIPS 140-2 level 2
General
Webpage LanguageEnglish, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
Edge StorageMicro SD/SDHC/SDXC 2slot Max. 1TB(512GBx2)
Memory8GB RAM, 32GB eMMC
NVIDIA Carrier Board- Supported Modules: NVIDIA Jetson Orin Nano 4GB/8GB, Orin NX 8GB/16GB - Storage: 2 x PCIe M.2 NVMe SSD slots *Recommend Industrial rated SSDs with support for extended wide temperature (-40°C ~ 85°C)
Environmental & Electrical
Operating Temperature / Humidity-40°C~+55°C(-40°F~+131°F) / 0~100% RH(condensing) * Start up should be done at above -20°C Humidity control /w AIR vent
Storage Temperature / Humidity-50°C~+60°C(-58°F~+140°F) / 0~90% RH
Wind Load241km/h(150mph)
EPA(Effective Projected Area)0.046㎡
CertificationIP66, NEMA4X, IK10, NEMA-TS 2(2.2.7.2-8, 2.2.8, 2.2.9)
Input VoltageHPoE(IEEE802.3bt type4, Class8)
Power ConsumptionHPoE: Max 66.0W, Typical 40.0W(Orin NX 8GB) Max 71.0W, Typical 40.0W(Orin NX 16GB)
Mechanical
Color / MaterialWhite / Aluminum + PC Bubble: Hard-coated dome
RAL CodeRAL9003
Product Dimensions / Weightø315x180mm(ø12.40x7.09") / 6100g(13.45lb)
Compatible Conduit hole / Gangbox19.1mm(3/4")(M25) Single, double, 4" octagon, 4" square
Certifications & Standards
EMCFCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471
EnvironmentIEC/EN 63000 IEC/EN 60529 IP66, IEC/EN 62262 IK10 NEMA 250 type 4X, NEMA-TS 2(2.2.7.2-8, 2.2.8, 2.2.9)
Compatible Models
Hanging AdaptorSBP-315HMW, SBP-317HMWP
Ceiling Mount (Assy)SBP-150CMI/300CMI, SBP-300CMW1/900CMW, SBP-300CMTW, SBP-300CMTS
Ceiling Mount (Single Unit)SBP-180CMB/140CMB, SBP-180CMS, SBP-900CMP/300CMP/150CMP, SBP-C15P, SBP-C15H
Wall MountSBP-400WMW/250WMW, SBP-300WMW
Wall Mount AdaptorSBP-300BW1, SBP-115PFA
Pole MountSBP-300PMW2
Corner MountSBP-300KMW1, SBP-156KMW
Parapet MountSBP-300LMW, SBP-156LMW1
CabinetSBP-300NBW, SBP-150NBW
Interface BoxSPM-4210
Other Compatible ModelsSBP-315C, SPO-8315
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide: 50.8m(166.77ft) / Tele: 176.6m(579.49ft)
Observe (63PPM/ 19PPF)Wide: 20.3m(66.71ft) / Tele: 70.7m(231.80ft)
Recognize (125PPM/ 38PPF)Wide: 10.2m(33.35ft) / Tele: 35.3m(115.90ft)
Identify (250PPM/ 76PPF)Wide: 5.1m(16.68ft) / Tele: 17.7m(57.95ft)
Ver
Ver202412
