Product Highlights
Resolution	3MP
Technology	IP/Network
Compliance	NDAA Compliant

3MP High-Speed LPR bullet Camera with Wisenet Road AI, LPR + MMCR (Make, Model & Color) Recognition on the Edge. 32GB Micro SD card included for storage of up to 10,000 LPR/Vehicle images. Licensed open platform application for multiple regions/countries.

• 3MP Color Global Shutter Sensor Camera with AI-based LPR • 6.8~120mm (18x) motorized varifocal • H.265, H.264, MJPEG codec • Maximum 60fps@3MP all resolutions (H.265, H.264, MJPEG) • Edge Storage Pre-installed with 32GB Micro SD to support 10,000 LPR images • WiseStreamII support • HPoE, 12VDC • IR Viewable Length 50m (164.04ft) • IP66, IK10, NEMA 4X, NEMA TS 2 (2.2.8, 2.2.9) • Wisenet Road AI application (Pre-installed) - License/Number Plate Recognition - Make/Model/Color Recognition / Vehicle Type - Allow / Deny list notification - Smart Search (LP/NP, Country, brand, model, color, vehicle type)

• Optional mounting accessories may be required depending on installation environment *HPOE power supply is not included, must be purchased separately if required

Care is required in selecting the camera and mounting location to ensure accurate plate recognition. See product selector and quick reference guide for details.

Video
Spec Display Name																																																																TNO-7180RLP
Imaging Device																																																																1/1.8" CMOS, Global shutter
Resolution																																																																3M: 2048x1536, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 2M: 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate																																																																3M: H.265/H.264: Max. 55fps/50fps(55Hz/50Hz), MJPEG: Max. 5fps(55Hz/50Hz) 2M: H.265/H.264: Max. 60fps/50fps(60Hz/50Hz), MJPEG: Max. 5fps (60Hz/50Hz)
NETD																																																																none
Pixel Size																																																																none
Min. Illumination																																																																Color 0.1 Lux (1/30sec, gain 48dB)
Video Out																																																																CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation
Video Transmission Distance																																																																none
Lens
Focal Length (Zoom Ratio)																																																																6.8~120mm(18x) motorized varifocal
Max. Aperture Ratio																																																																F1.6(Wide)~F4.13(Tele)
Angular Field of View																																																																H: 54.5º(Wide)~3.4º(Tele), V: 42.3º(Wide)~2.5º(Tele)
Min. Object Distance																																																																2m (6.5ft)
Focus Control																																																																Simple focus, Focus save
Lens Type																																																																DC auto iris
Mount Type																																																																none
Optional Lens																																																																none
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range																																																																None
Pan Range																																																																None
Pan Speed																																																																None
Tilt Range																																																																None
Tilt Speed																																																																None
Rotate Range																																																																None
Sequence																																																																None
Preset Accuracy																																																																None
Operational
Camera Title																																																																Displayed up to 85 characters
Direction Indicator																																																																none
Day & Night																																																																Auto(ICR)
Backlight Compensation																																																																BLC, SSDR
Wide Dynamic Range																																																																none
Digital Noise Reduction																																																																SSNRⅤ
Digital Image Stabilization																																																																not support
Defog																																																																Not Support
Motion Detection																																																																8ea, polygonal zones
Privacy Masking																																																																6ea, Rectangle zones - Color: Grey/Green/Red/Blue/Black/White
Gain Control																																																																Support
White Balance																																																																ATW / AWC / Manual / Indoor / Outdoor
LDC																																																																Not Support
Electronic Shutter Speed																																																																Minimum / Maximum / Anti flicker (1/25 ~ 1/12,000sec) / Global Shutter mode
Digital PTZ																																																																none
Video Rotation																																																																Flip, Mirror
Analytics																																																																Analytics events - Motion detection, Tampering, Virtual line(Crossing/Direction), Virtual Area(Loitering/Intrusion/Enter/Exit, Appear/Disappear)
Business Intelligence																																																																None
Serial Interface																																																																RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O																																																																4 configurable I/O ports
Alarm Triggers																																																																Analytics, Network disconnect, Alarm input
Alarm Events																																																																When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP
Audio In																																																																Selectable(mic in/line in)
Audio Out																																																																Line out
IR Viewable Length																																																																WiseIR 50m (164ft)
IR Illuminator (Optional)																																																																none
Water Removal																																																																None
Auto Tracking																																																																None
Coaxial Protocol																																																																None
Color Palettes																																																																None
Radiometry
Temperature detect range																																																																None
Temperature accuracy																																																																None
Temperature detection																																																																None
Additional																																																																None
Network
Ethernet																																																																RJ-45(10/100/1000BASE-T)
Video Compression																																																																H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression																																																																none
Smart Codec																																																																Manual(5ea area), WiseStreamⅡ
Video Quality Adjustment																																																																H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
Bitrate Control																																																																H.264/H.265: CBR or VBR MJPEG: VBR
Streaming																																																																Unicast(20 users) / Multicast Multiple streaming (Up to 10 profiles)
Protocol																																																																IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security																																																																HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin root CA) Secure boot/OS/Storage, Verify firmware forgery TPM 2.0 with FIPS 140-2 level2
Application Programming Interface																																																																ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform v3.60
General
Webpage Language																																																																English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer																																																																Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage																																																																Micro SD/SDHC/SDXC 1slot (32GB Card preinstalled)
Memory																																																																2048MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity																																																																Normal : -40°C~+55°(-40°F ~ +131°F) / Intermittent : -40°C~+60°C(-40°F ~ +140°F) Cold start : -40°C Maximum Temperature based on NEMA-TS 2(2.2.7) : +74°C(+165°F) Less than 95% RH(Non-condensing)
Storage Temperature / Humidity																																																																-50°C~+60°C / Less than 95% RH(Non-dondensing)
Certification																																																																IP66, IK10, NEMA 4X, NEMA TS 2(2.2.8, 2.2.9)
Input Voltage																																																																HPoE(IEEE802.3bt type3, Class6), 12VDC ** HPoE injector not included
Power Consumption																																																																PoE : Max 50W, Typical 27W 12VDC : Max 47.5W, Typical 25W
Mechanical
Color / Material																																																																White/Aluminum
RAL Code																																																																RAL9003
Product dimensions / weight																																																																W186.9 x D293.7 x H259.3 (mm) / 4.8kg (10.5 lb)
Compatible Conduit hole / Gangbox																																																																None
Hanging mount(Dome)																																																																None
Skin cover(Dome)																																																																None
Weather cap(Dome)																																																																None
Power module																																																																None
Backbox																																																																None
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)																																																																None
Observe (63PPM/ 19PPF)																																																																None
Recognize (125PPM/ 38PPF)																																																																None
Identify (250PPM/ 76PPF)																																																																None
Wisenet Road AI LPR/ANPR/MMCR
Solution > City Traffic Observation																																																																Highways
Speed Description > Regular Speed																																																																High Speed
Lane Coverage > Up to 2 lanes																																																																Up to 2 lanes
Speed limit > Up to 120kmh (75mph) for 2 lanes																																																																Up to 200kmh (125mph) for 2 lanes
Min. Forward Distance > 16m (52ft)																																																																27m (90ft)
Max. Forward Distance > 46m (150ft)																																																																46m (150ft)
Max. Horizontal Angle > 25°																																																																15°
Max. Vertical Angle > 25°																																																																15°
Horizontal Offset > Up to 7m (24ft)																																																																Up to 4m (12ft)
Camera Height > Up to 7m (24ft)																																																																Up to 7m (24ft)
Vehicle Recognition > Make : 70+ Model : 600+ Color : 10																																																																Make : 70+ Model : 600+ Color : 10
Available Countries > Albania, Armenia, Austria, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Cyprus, Czechia, Denmark, Estonia, Finland, France, Greece, Germany, Hungary, Ireland, Iceland, Italy, Lithuania, Luxembourg, Latvia, Montenegro, North Macedonia, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovenia, Slovakia, Spain, Switzerland, Turkey, United Kingdom, United States of America, Canada, Mexico																																																																Albania, Armenia, Austria, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Cyprus, Czechia, Denmark, Estonia, Finland, France, Greece, Germany, Hungary, Ireland, Iceland, Italy, Lithuania, Luxembourg, Latvia, Montenegro, North Macedonia, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovenia, Slovakia, Spain, Switzerland, Turkey, United Kingdom, United States of America, Canada, Mexico

Product tags

Security Camera (1156)
,
IP Camera (899)
,
3MP (9)
,
Plate Camera (2)

Only registered users can write reviews

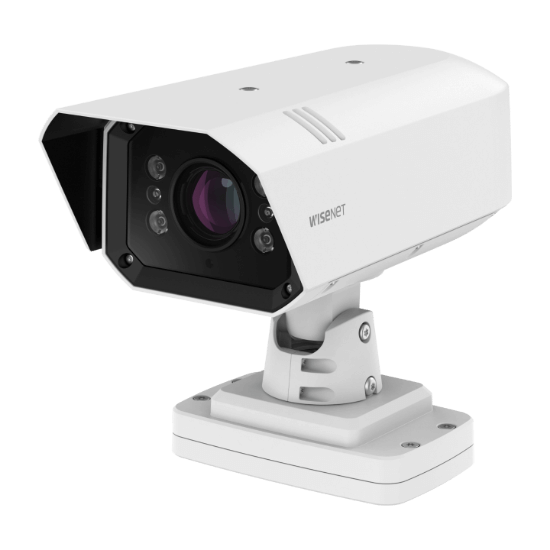

Hanwha Vision 3MP Outdoor License Plate Capture IP Security Camera with 6.8-120mm Lens and 18x Optical Zoom (TNO-7180RLP)
