Manufacturer: Hanwha Vision

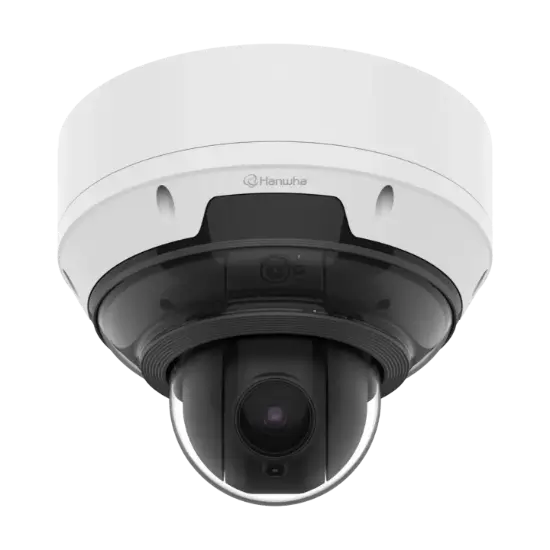

Hanwha Vision 3CH + PTZ, AI, IR Multi directional outdoor camera / 5MP x 3CH + 4MP 18x PTZ (PNM-C19183RVTP)

SKU: 212401
MPN: PNM-C19183RVTP
Hanwha Vision 3CH + PTZ, AI, IR Multi directional outdoor camera / 5MP x 3CH + 4MP 18x PTZ (PNM-C19183RVTP)
Call for price
Buy more, save more
10+ units
$2,849.95
30+ units
$2,789.95
50+ Lowest price
$2,699.96
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Product Highlights
Resolution4MP, 5MP
TechnologyIP/Network
ComplianceNDAA Compliant
Wisenet P series network vandal outdoor Multi-Directional camera
  • Camera Specifications:
    • 3CH x 5MP @ 30FPS and 4MP PTZ with 18x Zoom
    • 3CH Fixed Lens 2.4mm (FoV H: 123°, V: 91°)
    • 120dB WDR
    • IR viewable length: 15m (49ft)
  • Analytics events based on AI engine:
    • Classified object types: Person, Face, Vehicle, License plate
    • Attributes:
      • Vehicle: Type and color (car, bus, truck, motorcycle, bicycle)
      • Person: Upper and bottom clothing color
    • IVA (Intelligent Video Analytics):
      • Virtual line/Area
      • Enter/Exit
      • Loitering
      • Direction
      • Intrusion
    • Appear/Disappear
  • Business Intelligence based on AI engine:
    • People counting
    • Vehicle counting
    • Queue management
    • Heatmap
  • AI Technologies:
    • WiseNR II (using AI engine)
    • WiseStream III (based on AI engine)
  • I/O Box compatibility
  • TPM with FIPS 140-3 Level 3
  • Storage: micro SD card 512GB x2
  • Durability and Ratings: IP66/IK10/NEMA 4X
  • Operating Temperature: -40°C ~ +55°C (-40°F ~ +131°F)
  • Power: PoE++
  • Hard-coated dome bubble
  • PoE++ Injector included

Video
Imaging Device1/2.8" CMOS
Resolution2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. FramerateH.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(@5MP Max. 5fps)
Min. IlluminationColor: 0.08Lux(F2.0, 1/30sec, 30IRE) BW: 0.008Lux(F2.0, 1/30sec, 30IRE), 0Lux(IR LED on)
Video OutUSB: Micro USB Type C for installation
Lens
Focal Length (Zoom Ratio)2.4mm fixed focal
Max. Aperture RatioF2.0
Angular Field of ViewH: 123° / V: 91° / D: 159°
Min. Object Distance0.5m(1.64ft)
Focus ControlFixed
Lens TypeFixed iris
Pan / Tilt / Rotate
Pan Range-
Pan Speed-
Tilt Range-
Tilt Speed-
Rotate Range-
Sequence-
Preset Accuracy-
Operational
Camera TitleDisplayed up to 85 characters
Direction Indicator-
Day & NightAuto(ICR)
Backlight CompensationBLC, WDR, SSDR
Wide Dynamic RangeextremeWDR(120dB)
Digital Noise ReductionSSNRⅤ, WiseNRⅡ(Based on AI engine)
Digital Image Stabilization-
DefogSupport
Motion Detection8ea, 8point Polygonal zones
Privacy Masking12ea, 4point quadrangle zones - Color: Grey/Green/Red/Blue/Black/White
Gain ControlLow / Middle / High
White BalanceATW / AWC / Manual / Indoor / Outdoor
LDCSupport
Electronic Shutter SpeedMinimum / Maximum / prefer shutter / Anti flicker(1/5~1/12,000sec) Prefer shutter control(Based on AI engine)
Video Rotation-
AnalyticsClassified object type: Person/Face/Vehicle/License plate Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle, Color), Person(Clothing top/bottom color) Support BestShot Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection Analytics events - Tampering, Virtual area(Appear/Disappear) * Audio detection via optional I/O box
Business IntelligenceBased on AI engine: People/Vehicle counting, Queue management, Heatmap
Alarm I/O* Support Alarm I/O via optional SPM-4210 I/O box
Alarm TriggersAnalytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
Alarm EventsWhen alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - MQTT: publication - Smart zoom
Audio In* Support Audio via optional SPM-4210 I/O box
Audio Out* Support Audio via optional SPM-4210 I/O box
Light TypeIR LED
Light Viewable Length15m(49.21ft) 10m(32.8ft) under 3m height installation
IR Wavelength850nm
Auto Tracking-
Network
EthernetMetal shielded RJ-45(10/100/1000BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Smart CodecManual(5ea area), WiseStream(Based on AI engine)
Video Quality AdjustmentH.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
Bitrate ControlH.264/H.265: CBR or VBR MJPEG: VBR
StreamingUnicast(5 users per channel) / Multicast Multiple streaming(Up to 4 profiles per channel)
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP(StartTLS), ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Application Programming InterfaceONVIF Profile S/T/G/M SUNAPI(HTTP API) Hanwha vision open platform
Security
OS / Firmware ProtectEncrypted Firmware, Secure boot, Signed Firmware
User authenticationDigest Authenticaton, Prevent brute-force attack
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS(WebSocket Secure), SRTP
Access ControlIP-based access control
Data ProtectEncryption Credentials, Encrypt compress for live recording file
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageSecure element, SDcard partition encrypt
Supply Chain SecuritySBOM
Security CertificateSecure element(FIPS 140-3 level3, CC EAL6+)
General
Webpage LanguageEnglish, Korean, Simplified Chinese, Traditional Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
Edge StorageMicro SD/SDHC/SDXC 2slot Max. 2TB(1TBx2)
Memory8GB RAM, 8GB eMMC
Environmental & Electrical
Operating Temperature / Humidity-40°C~+55°C(-40°F~+131°F) * Start up should be done at above -35°C 0~100% RH(condensing), Humidity control with AIR vent
Storage Temperature / Humidity-50°C~+60°C(-58°F~+140°F) / 0~90% RH
EPA(Effective Projected Area)0.04㎡
CertificationIP66, NEMA4X, IK10
Input VoltagePoE++(IEEE802.3bt type3, Class6)
Power ConsumptionPoE++: Max 42W, typical 32W
Mechanical
Color / MaterialWhite / Aluminum Hard-coated dome bubble
Material ManagementRoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018) REACH(Regulation (EC) No. 1907/2006) Conflict mineral policy(Section 1502 of US Dodd Frank Act)
RAL CodeRAL9003
Product Dimensions / Weightø251.4x212mm(ø9.9x8.35") / 4,800g(10.58lb)
Compatible Conduit hole / Gangbox19.1mm(3/4")(M25) Single, double, 4" octagon, 4" square
Certifications & Standards
EMCFCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC 62471
EnvironmentEN IEC 63000 IEC 60529 IP66, IEC 62262 IK10 NEMA 250 type 4X
Compatible Models
Hanging AdaptorSBP-250HMW
Ceiling Mount (Assy)SBP-150CMI/300CMI, SBP-300CMW1/900CMW, SBP-300CMTW, SBP-300CMTS
Ceiling Mount (Single Unit)SBP-180CMB/140CMB, SBP-180CMS, SBP-900CMP/300CMP/150CMP, SBP-C15P, SBP-C15H
Wall MountSBP-400WMW/250WMW, SBP-300WMW
Wall Mount AdaptorSBP-300BW1, SBP-115PFA
Pole MountSBP-300PMW2
Corner MountSBP-300KMW1, SBP-156KMW
Parapet MountSBP-300LMW, SBP-156LMW1
CabinetSBP-300NBW, SBP-150NBW
Interface BoxSPM-4210
Other Compatible ModelsSBP-315C, SPO-8315
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)28.1m(92.35ft)
Observe (63PPM/ 19PPF)11.3m(36.94ft)
Recognize (125PPM/ 38PPF)5.6m(18.47ft)
Identify (250PPM/ 76PPF)2.8m(9.23ft)
Ver
Ver202504
