Manufacturer: Hanwha Vision

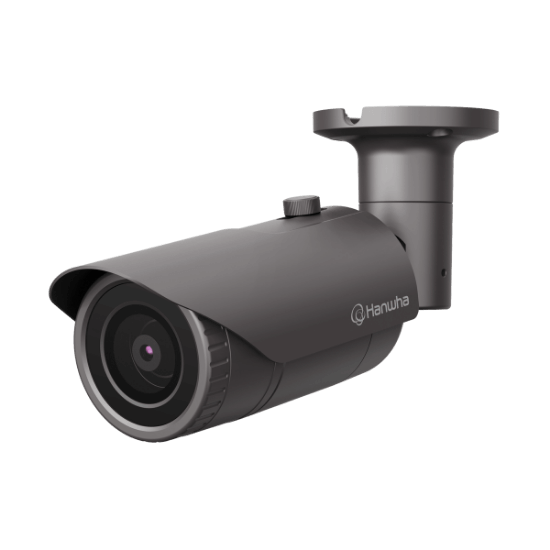

Hanwha Vision 2MP IR H.265 Outdoor Bullet IP Security Camera (QNO-6012R)

SKU: 212736
MPN: QNO-6012R
2MP IR H.265 Outdoor Bullet IP Security Camera (QNO-6012R) is a professional‑grade bullet network camera delivering refined image processing, low‑light support, and efficient.
$387.99
$608.99

Buy more, save more
10+ units
-5% $368.59
30+ units
-6% $364.71
50+ Lowest price
-8% $356.95
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Free shipping
Product Highlights
Resolution2MP/1080p
TechnologyIP/Network
ComplianceNDAA Compliant
  • 2 Megapixel (1920 x 1080) resolution
  • Built-in 2.8mm fixed lens
  • 30fps@all resolutions (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • Day & Night (ICR), WDR (120dB)
  • Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
  • micro SD (128GB) memory slot, PoE / 12V DC
  • IR viewable length 20m, IP66, IK10
  • Hallway view support
  • Analog video out for easy installation
  • LDC support (Lens Distortion Correction)
  • Genetec Stratocast compatible



Video
Imaging Device1/2.8" 2MP CMOS
Resolution1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. FramerateH.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz)
Min. IlluminationColor: 0.03Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on)
Video OutCVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio)2.8mm fixed focal
Max. Aperture RatioF2.0
Angular Field of ViewH: 113.7 / V: 61.5° / D: 134.5°
Focus ControlFixed
Operational
Camera TitleDisplayed up to 85 characters
Day & NightAuto(ICR)
Backlight CompensationBLC, WDR, SSDR
Wide Dynamic Range120dB
Digital Noise ReductionSSNR
Motion Detection4ea, polygonal zones
Privacy Masking6ea, rectangular zones
Gain ControlLow / Middle / High
White BalanceATW / AWC / Manual / Indoor / Outdoor
LDCSupport
Electronic Shutter SpeedMinimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video RotationFlip, Mirror, Hallway view(90°/270°)
AnalyticsDefocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Alarm I/OInput 1ea / Output 1ea
Alarm TriggersAnalytics, Network disconnect, Alarm input
Alarm EventsFile upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output
Audio InSelectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
IR Viewable Length20m(65.62ft)
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/High, MJPEG
Audio CompressionG.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Smart CodecWiseStreamⅡ
Bitrate ControlH.264/H.265: CBR or VBR MJPEG: VBR
StreamingUnicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
SecurityHTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming InterfaceONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage LanguageEnglish, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch
Web ViewerSupported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge StorageMicro SD/SDHC/SDXC 1slot 128GB
Memory512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity-30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C
Storage Temperature / Humidity-30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
CertificationIP66, IK10
Input VoltagePoE(IEEE802.3af, Class3), 12VDC
Power ConsumptionPoE: Max 7.00W, typical 5.20W 12VDC: Max 6.10W, typical 4.50W
Mechanical
Color / MaterialDark grey / Aluminum
Product Dimensions / WeightØ70.0x246.0mm(Ø2.76x9.69"), 700g(1.54 Ib)
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)25.1m(82.21ft)
Observe (63PPM/ 19PPF)10.0m(32.89ft)
Recognize (125PPM/ 38PPF)5.0m(16.44ft)
Identify (250PPM/ 76PPF)2.5m(8.22ft)
