Manufacturer: Hanwha Vision

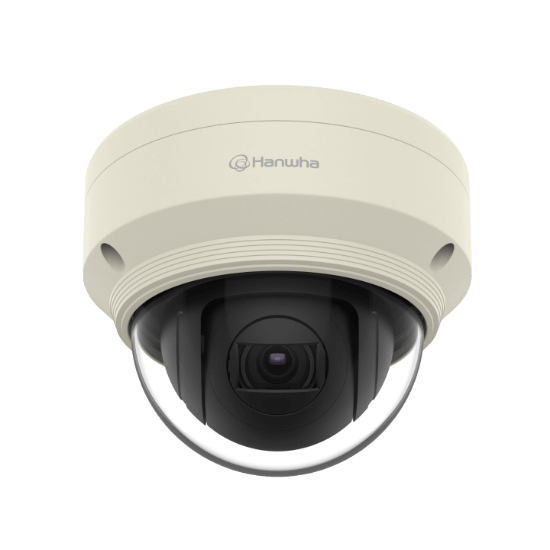

Hanwha Vision 2MP H.265 Outdoor PTZ Dome IP Security Camera (XNP-6040H)

SKU: 212784
MPN: XNP-6040H
2MP H.265 Outdoor PTZ Dome IP Security Camera (XNP-6040H) is a versatile PTZ security camera delivering refined image processing, low‑light support, and efficient.
$1,070.99
$1,797.99

Buy more, save more
10+ units
-5% $1,017.44
30+ units
-6% $1,006.73
50+ Lowest price
-8% $985.31
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Free shipping
Product Highlights
Resolution2MP/1080p
TechnologyIP/Network
ComplianceNDAA Compliant
  • 2 megapixel (1920 x 1080) resolution
  • 4.3X optical zoom (2.8 ~ 12mm) (119.5? ~ 27.9?)
  • 60fps@all resolutions (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, multiple streaming
  • Day & Night (ICR), WDR (150dB), Defog
  • Loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering
  • Motion detection, Handover
  • Dual micro SD/SDHC/SDXC memory slots (maximum 256GB each)
  • Wisestream II support
  • IP66, IK10

Video
Imaging Device1/2.8" CMOS
Resolution1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. FramerateH.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. IlluminationColor: 0.015Lux(F1.4, 1/30sec) BW: 0.0015Lux(F1.4, 1/30sec)
Video OutCVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio)2.8~12mm(4.3x) zoom
Max. Aperture RatioF1.4
Angular Field of ViewH: 119.5°(Wide)~27.9°(Tele) / V: 62.8°(Wide)~15.7°(Tele) / D: 142.1°(Wide)~32.0°(Tele)
Min. Object DistanceWide: 1.5m(4.92ft), Tele: 2m(6.56ft)
Focus ControlOneshot AF
Lens TypeDC auto iris
Pan / Tilt / Rotate
Pan Range0° ~ 350°
Pan Speed0.1°/sec ~60°/sec
Tilt Range0° ~90°
Tilt Speed0.1°/sec ~60°/sec
SequencePreset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy±0.5°
Operational
Camera TitleDisplayed up to 85 characters
Day & NightAuto(ICR)
Backlight CompensationBLC, HLC, WDR, SSDR
Wide Dynamic Range150dB
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport(built-in gyro sensor)
DefogSupport
Motion Detection8ea, 8point polygonal zones
Privacy Masking32ea, rectangular Support - Color: Grey/Green/Red/Blue/Black/White - Mosaic
Gain ControlLow / Middle / High
White BalanceATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter SpeedMinimum / Maximum / Anti flicker (2~1/12,000sec)
Video RotationFlip, Mirror
AnalyticsDirectional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
Serial InterfaceRS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/OInput 1ea / Output 1ea
Alarm TriggersAnalytics, Network disconnect, Alarm input
Alarm EventsFile upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset
Audio InSelectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio OutLine out, Max.output level: 1Vrms
Auto TrackingSupport
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264,MJPEG
Audio CompressionG.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart CodecManual(5ea area), WiseStreamⅡ
Bitrate ControlH.264/H.265: CBR or VBR MJPEG: VBR
StreamingUnicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles)
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour,LLDP, SRTP
SecurityHTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming InterfaceONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage LanguageEnglish, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge StorageMicro SD/SDHC/SDXC 2slot 512GB
Memory1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity-30°C~+55°C (-22°F~+131°F) / Less than 90% RH
Storage Temperature / Humidity-30°C~+60°C (-22°F~+140°F) / Less than 90% RH
CertificationIP66, IK10
Input VoltageDC12V, PoE(IEEE802.3af, Class3)
Power ConsumptionDC12V: Max. 8.6W PoE : Max. 9.6W
Mechanical
Color / MaterialIvory / Aluminum
Product Dimensions / WeightØ136x106mm(5.35x4.17"), 780g(1.72 lb)
Hanging Mount (Dome)SBP-301HM5
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide: 22.4m(73.47ft) / Tele: 154.6m(507.18ft)
Observe (63PPM/ 19PPF)Wide: 9.0m(29.39ft) / Tele: 61.8m(202.87ft)
Recognize (125PPM/ 38PPF)Wide: 4.5m(14.69ft) / Tele: 30.9m(101.44ft)
Identify (250PPM/ 76PPF)Wide: 2.2m(7.35ft) / Tele: 15.5m(50.72ft)
