| Product Highlights | |
| Technology | HD-TVI |
| Resolution | 2MP/1080p |
| Camera Features | Outdoor |

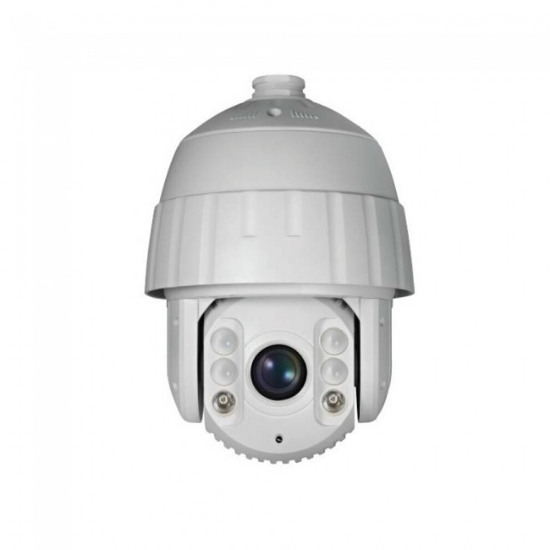

- Outdoor PTZ Speed Dome
- 2MP (1920x1080 Resolution)
- Multiprotocol Video Output
- TVI, AHD, CVI, Analog
- 32x Optical Zoom, 16x Digital Zoom
- Approximately 490FT IR Range
- Privacy Masking, 3D DNR, 120dB WDR
- 3D Intelligent Positioning
- AC24V, ,
Details
| MODEL | GAP312-IR/32X |
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max Resolution | 2MP (1920x1080) |
| Frame Rate | 30FPS @ 1920x1080 |
| Min Illumination | Color: 0.005 Lux @ (F1.2, AGC On), 0 Lux with IR |
| White Balance | Auto, Manual, ATW, Indoor, Outdoor |
| AGC | Auto, Manual |
| 3D DNR | Support |
| Wide Dynamic Range | 120dB |
| Shutter Time | 1/1 sec to 1/10,000 sec |
| Day & Night | IR Cut Filter |
| Lens | |
| Zoom | 32x Optical, 16x Digital |
| Focal Length | 4.8mm to 153mm |
| Focus Mode | Auto, semi auto, manual |
| Horizontal Field of View | 54.2° to 1.97° (wide-tele) |
| Zoom Speed | Approx 3.5 sec (optical, wide to tele) |
| Pan and Tilt | |
| Pan Range | 360° Endless |
| Pan Speed | Manual: 0.1° to 160°/sec, Preset: 160°/sec |
| Tilt Range | -15° to 90° (auto flip) |
| Tilt Speed | Manual: 0.1° to 120°/sec, Preset: 120°/sec |
| Presets | 256 |
| Patrol | 10 Patrols, up to 32 presets per patrol |
| Pattern | 5 patterns |
| Infrared | |
| IR Distance | Approx 492FT |
| IR Intensity | Auto |
| Input/Output | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| RS-485 Interface | Half Duplex Mode, Self Adaptive Hikvision, Pelco-P, Pelco-D Protocol |
| UTC Function | UTC protocol (HIKVISION-C protocol in previous DVR) |
| General | |
| Power | AC24V, Max 54W |
| Working Temperature | -22° - 150°F |
| Protection Level | IP66 Rated Weatherproof |
| Mounting | Various Mounting Modes (Optional) |
| Dimensions | 8.66" x 14" |
| Weight | Approx 15 LBS |
