| Product Highlights | |
| Technology | HD-TVI |
| Lens | Motorized Lens |
| Resolution | 5MP |
| Camera Features | Outdoor |

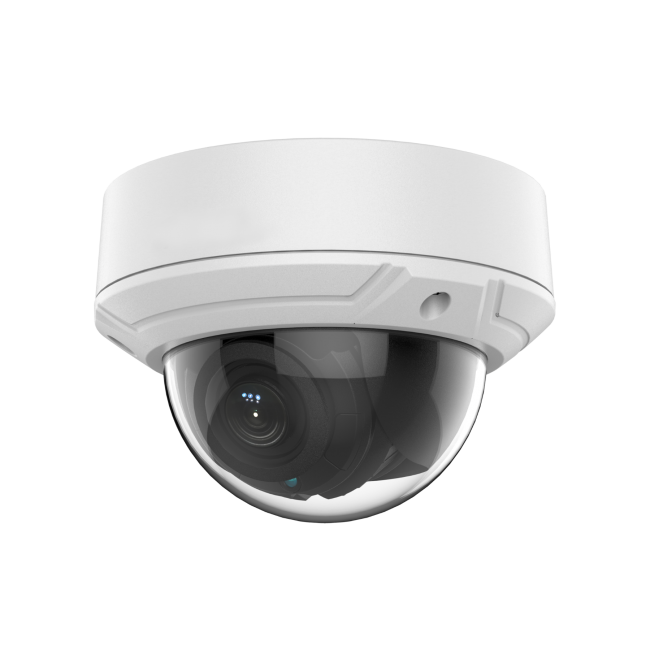

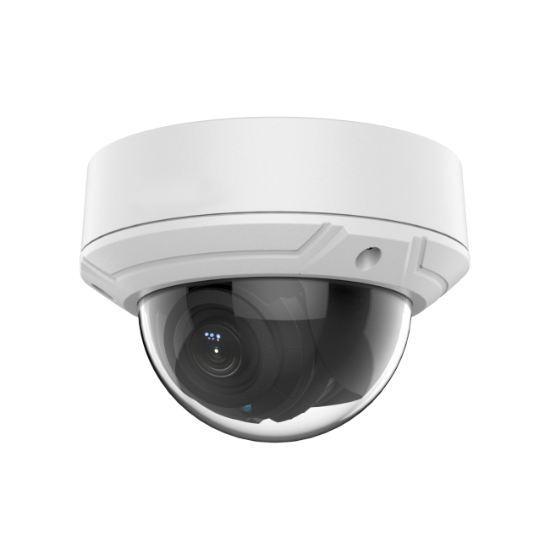

- HD Over Coax IR Dome
- Switchable TVI, AHD, CVI, CVBS
- 5MP (2592x1944 Resolution)
- 2.7-13.5mm Motorized Lens
- EXIR Technology With Smart IR
- Approx 131 FT IR Range
- 3 Axis Design, Vandal Resistant
- IP67 Rated, D-WDR
- Dual Voltage
Details
| MODEL | GAC336D-OD4Z |
| Camera | |
| Image Sensor | 5MP CMOS |
| Effective Pixels | 2592 (H) x 1944 (V) |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC On), 0.0 Lux with IR |
| Shutter Time | 1/30 Sec to 1/50,000 Sec |
| Lens | 2.7-13.5mm Motorized Lens |
| Angle Adjustment | Pan: 0° - 355°; Tilt: 0° - 75°; Rotate: 0° - 355° |
| Video Frame Rate | 2592 x 1944 @ 20FPS |
| HD Video Output | 1 Analog HD Output |
| Menu | |
| AGC | Support |
| D/N Mode | Auto/Color/BW |
| White Balance | Auto/Manual |
| Backlight Compensation | Support |
| Functions | Brightness, Sharpness, Smart IR |
| UTC Function | Support |
| General | |
| Working Temperature | -40°F - 140°F |
| Power Supply | Dual Voltage |
| Power Consumption | Max 10W |
| Ingress Protection | IP67 |
| IR Range | Approx 131FT |
| Dimensions | 6.1" x 4.4" |
| Weight | Approx 2 LBS |
