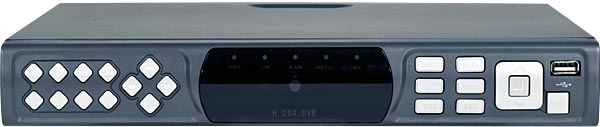

8 Ch Standalone Real-Time CCTV 240fps DVR system (DVST-SD-08)

SKU: 141433

MPN: DVST-SD-08

Call for price

Qty:

Have a question? ASK AN EXPERT, Call 877-366-2444
Or Chat Live (Mon–Fri 8am–6pm CT)

Key Features

Standard H.264 Compression Format
Embedded high-speed microcontroller & Linux system, high stability, auto system upgrading
Support Time, Motion, and Alarm searching mode
Support mouse, IR remote control, and Front panel
Support network remote, USB backup
Pentaplex, 8channel playback simultaneously
Recording bit/frame adjustable
Central Management System
Support live display, record, playback, backup, and network
Supports 3G, GPRS, WIFI wireless of mobile phone network monitoring function (phone monitoring, capture, PTZ control)
Built-in VGA interface, output resolution up to 1024*768
More interface; support USB, alarm, intercom, PTZ control

SPECIFICATIONS

	DVST-SD-08
Video Compression	H.264® CODEC
Video Input	BNC*8 (Composite signal 1.0Vp-p 75Ω)
Output (BNC)	BNC*1 (Composite signal 1.0Vp-p 75Ω)
Output (VGA)	Built-in VGA interface (12801024, 1024768, 800*600)
Video Record Frame Rate	NTSC : 30fps/ch
Recording Resolution	NTSC : 360*240 240fps
Operation Mode	Live display, Record, Playback, Backup, Network
Recording Mode	Manual, Time, Motion, Remote
Audio Input/Output	4ch(RCA)/1ch(RCA)
Audio encode/decode	ADPCM
PTZ Camera Control	YES(Pelco-D&Pelco-P)
HDD Storage	1pc SATA HDD
Network Interface	RJ45(10M/100M adjustable)
Network protocol	TCP/IP, UDP, HTTP, NTP, DHCP, DDNS
CMS	YES(Maximum:16 different IP addresses)
IR Remote Control	YES
Multilingual OSD	YES
Voltage input	12V

Your name

Your email

Enquiry

Write your own review

Review title:

Review text:

Rating:

Products specifications

Technology	Analog
Number of Channels	8Ch
