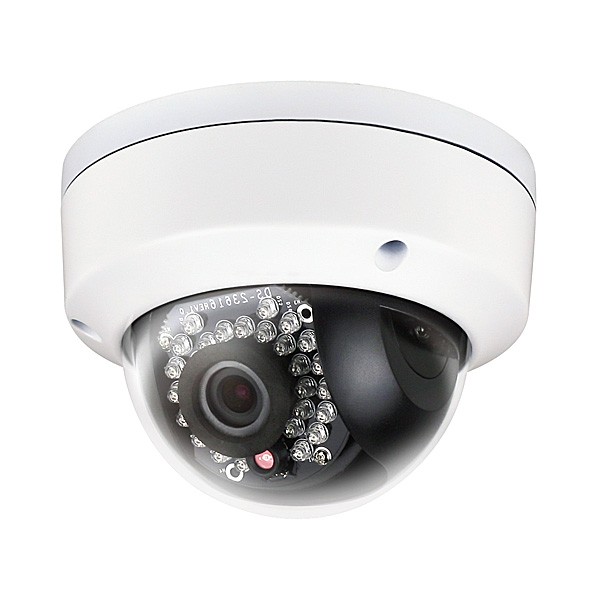

1.3MP Dome IP Camera DWDR 2.8mm (CMIP3412-28)

SKU: 121642
MPN: CMIP3412-28
$195.95
$135.95

Accepted Payments

1.3MP High resolution Dome IP Camera, complete weather proof and vandal resistant megapixel IP camera, this camera features a true day and night capabilities with night vision for up to 100ft, this model# CMIP3412-28 has built in image enhancement features such as DWDR (Digital Wide Dynamic Range) and 3D WDR for noise reduction, with Dual stream and real-time video stream and a ultra wide viewing angle lens.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or
Chat Live (Mon–Fri 8am–6pm CT)
  • 1.3 megapixel high resolution
  • HD real-time video
  • Day / night auto switch
  • IP66 ingress protection
  • IR LEDs :Approx 65 to 100ft(About 20 to 30m)
  • Vandal-proof housing
  • 3D DNR & DWDR & BLC



Camera
Image Sensor: 1/3" sensor
Min. Illumination: 0.028 [email protected], AGC ON
0 lux with IR
Shutter time: 1/25s ~ 1/100,000s
Lens: 2.8mm @F2.0
1280 X 960:angle of view: 92.5°
Lens Mount: M12
Angle adjustment Pan: 0° ~ 355°, tilt: 0° ~ 65°
Digital noise reduction 3D DNR
Wide dynamic range Digital WDR
Day& Night: ICR
Compression Standard
Video Compression: H.264 /MJPEG
H.264 codec profile Main profile
Bit Rate: 32 Kbps ~ 16 Mbps
Dual stream Yes
Max. Image Resolution: 1280x960
Frame Rate:

60 Hz: 30 fps (1280 × 960), 30 fps(1280 x 720)

50 Hz: 25 fps (1280 × 960), 25 fps(1280 x 720)

Image Settings: Saturation, brightness, contrast adjustable through client software or web browser
BLC: Yes, zone configurable
Network
Network Storage: NAS (iSCSI optional)
Alarm Trigger: Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos (SIP, SRTP, IPv6 optional)
Security: User authentication, watermark
System Compatibility: ONVIF, PSIA, CGI
General functionalities Flickerless, heartbeat, mirror, user authentication, video mask, watermark
Interface
Communication Interface: 1 RJ45 10M / 100M ethernet interface
General
Operating Conditions:

-13°F ~ 140°F (-25°C ~ 60°C) humidity 95% or less (non-condensing)

Power Supply: 12 VDC ± 10%, PoE (802.3af)
Power Consumption: Max. 5.5W
Impact protection IEC60068-275Eh, 50J; EN50102, up to IK10
Weather Proof: IP66
IR Range: Approx 65 to 100 ft(About 20 to 30m)
Dimensions: Φ 4.4"× 3.2"(111 × 82 mm)
Weight: 1.1lb(500g)
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Lens 2.8mm
Technology IP/Network
Resolution 1.3MP/960p
Camera Features Outdoor
Camera Features Vandal Proof
Camera Features WDR
