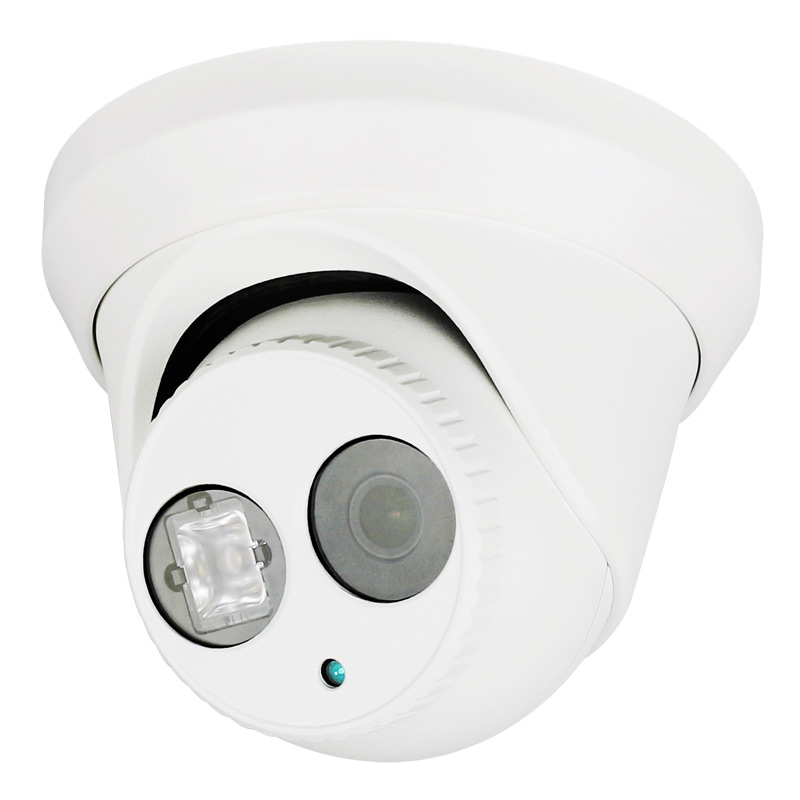

1.3MP Dome IP Camera 4mm (CMIP3012)

SKU: 121631
MPN: CMIP3012
$202.95
$137.95

Accepted Payments

1.3 megapixel high resolution, HD real-time video, Day / night auto switch, IP66 ingress protection, Matrix IR illuminator (up to 100ft/30m), 3D DNR & DWDR
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or
Chat Live (Mon–Fri 8am–6pm CT)
  • Up to 1.3 megapixel high resolution
  • HD real-time video
  • Day / night auto switch
  • IP66 ingress protection
  • Matrix IR illuminator (up to 100ft/30m)
  • 3D DNR & DWDR



Camera
Image Sensor: 1/3" Progressive Scan CMOS
Min. Illumination: 0.028 lux @F2.0, AGC ON, 0 lux with IR
Shutter time: 1/25s ~ 1/100,000s
Lens:

4mm @F2.0

1280 x 960: angle of view: 73.1°

[email protected] 1280 x 960: angle of view: 73.1°
Lens Mount: M12
Day& Night: IR cut filter with auto switch
Digital noise reduction: 3D DNR
Compression Standard
Video Compression: H.264 / MPEG4 / MJPEG
Bit Rate: 32 Kbps ~ 16 Mbps
Max. Image Resolution: 1280x960
Frame Rate:

60Hz: 30fps (1280 × 960), 30fps (1280 × 720)

50Hz: 25fps (1280 x 960), 25fps (1280 x 720)

Image Settings: Saturation, brightness, contrast adjustable through client software or web browser
BLC: Yes, zone configurable
Network
Network Storage: NAS (iSCSI optional)
Alarm Trigger: Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,
802.1x, Qos (SIP, SRTP, IPv6 optional)
Security: User authentication, watermark
System Compatibility: ONVIF, PSIA, CGI
Interface
Communication Interface: 1 RJ45 10M / 100M ethernet interface
General
Operating Conditions: -13°F ~ 140°F(-25°C ~ 60°C ) humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 10%, PoE (802.3af)
Power Consumption: max. 7W
Weather Proof: IP66
IR Range: Up to 100ft(30m)
Dimensions: Φ5.0"× 3.9"(Φ127.0 x 97.5 mm)
Weight: 1.5 lb(670g)
