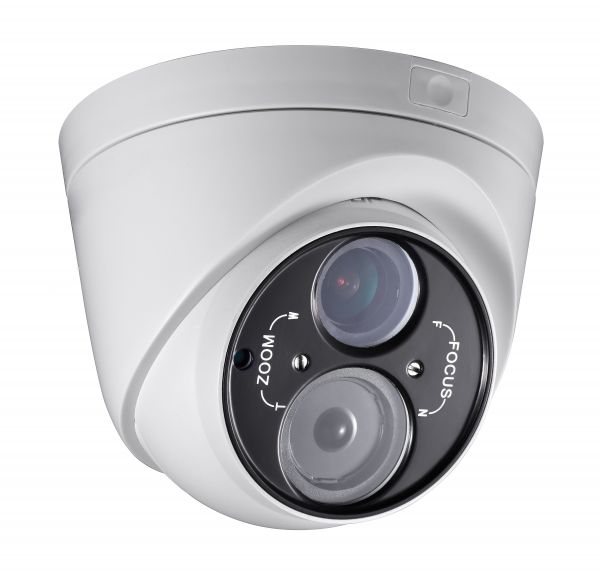

1080p HD-TVI Dome Camera 2.8-12mm Varifocal Lens (CMHT1623W)

SKU: 121453
MPN: CMHT1623W
$169.95
$134.95
HD1080P, HD-TVI Technology Over Coax, 1/3"Sensor,2.8-12mm Varifocal Lens,1 Matrix IR LED up to 165ft(50m)IR distance, WDR, DC 12V
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or
Chat Live (Mon–Fri 8am–6pm CT)
  • 1/3" Sensor
  • HD 1080P Video Output
  • Adopts HDTVI Technology
  • True Day/Night
  • 2.8-12mm Varifocal Len
  • 1 Matrix IR LED up to 165ft (50m)
  • WDR
  • OSD Menu via UTC technology with Platinum TVI DVR,
  • DC 12V
CMHT1623W
Camera
Image Sensor  1/3"Sensor
Signal System NTSC / PAL(Euro Version)
Effective Pixels 1920(H)×1080(V)
Min. Illumination 0.014Lux @ (AGC ON),0 Lux with IR
Shutter Speed NTSC: 1/30 ~ 1/50,000
PAL: 1/25 ~ 1/50,000
Lens 2.8-12mm
Day & Night ICR
Synchronization Internal synchronization
Video Frame Rate NTSC:1080p@30fps/PAL:1080p@25fps
HD Video Output 1 Analog HD output
Menu
Scene Indoor, Outdoor, Indoor1, LOW-LIGHT
Camera ID On / off (15 characters, position programmable)
AGC Support
D / N Mode Color / BW / EXT
White Balance ATW, AWC-SET, Indoor, Outdoor, Manual
D/N Mode Color/BW/SMART IR
Privacy Mask On/Off,maximum 8 zones
Motion Detection On / Off, maximum 4 zones
BLC Support
Anti-flicker On / off
Language English, Japanese, CHN1, CHN2, Korean, German, French, Italian,Spanish,Polish, Russian, Portuguese, Dutch, Turkish, Hebrew and Arabic
Functions Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM
General
Working Temperature
/Humidity
-4°F - 140°F(-20 °C - 60 °C )
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max.7W
Weather Proof Ratings IP66
IR Range Up to 165ft(50m)
Dimension(without junction box)  φ5.1'' × 3.7''( φ130.5 x 93.2mm)
Weight(without junction box) 0.7lb(300g)
Write your own review
  • Bad
  • Excellent
Products specifications
Resolution 2MP/1080p
Camera Features WDR
Technology HD-TVI
Lens 2.8-12mm
Camera Features Outdoor
