| Product Highlights | |
| Technology | HD-TVI |
| Resolution | 2MP/1080p |

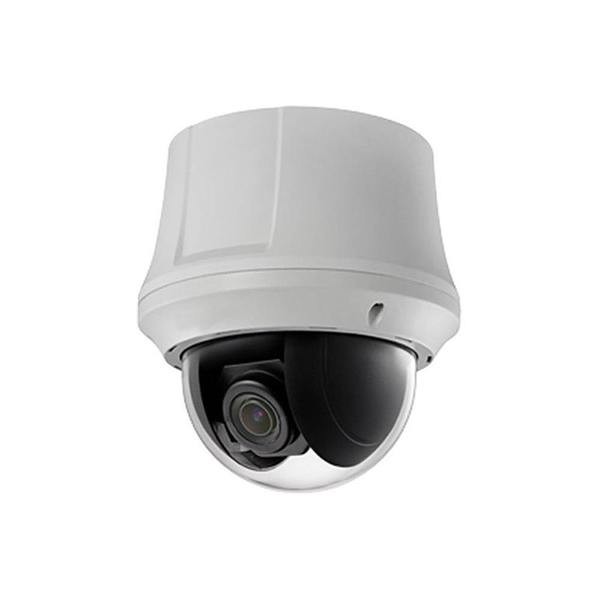

- HD-TVI Indoor PTZ Camera
- 2MP (1920x1080 Resolution)
- 25x Optical Zoom, 16x Digital Zoom
- Day & Night with ICR
- 3D DNR, 120dB WDR
- 3D Intelligent Positioning
- AC24V, ,
Details
| MODEL | AP112-ID/25X |
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max Image Resolution | 1920 x 1080 |
| Frame Rate | 30 FPS @ 1920 x 1080 |
| Min Illumination | Color: 0.005 Lux @ (F1.6, AGC On), B/W: 0.001 Lux @ (F1.6, AGC On) |
| White Balance | Auto, Manual, ATW, Indoor, Outdoor |
| AGC | Auto, Manual |
| 3D DNR | Support |
| WDR | 120dB |
| Backlight Compensation | Support |
| Shutter Time | 1/1 Sec to 1/10,000 Sec |
| Day & Night | IR Cut Filter |
| Privacy Mask | 8 Privacy Mask Programmable, 8 Zones |
| Focus Mode | Auto, Semi-auto, Manual |
| Lens | |
| Focal Length | 4.8 - 120mm: 25x Optical Zoom, 16x Digital Zoom |
| Zoom Speed | Approx 3.6 Sec (Optical Wide-Tele) |
| Aperture Range | F1.6 to F3.5 |
| Pan and Tilt | |
| Pan Range | 360° Endless |
| Pan Speed | Pan Manual Speed: 0.1° to 100°/s |
| Tilt Range | -5° to 90° (Auto Flip) |
| Tilt Speed | Tilt Manual Speed: 0.1° to 80°/s |
| Number of Preset | 256 |
| Patrol | 10 Patrols, Up to 32 Presets Per Patrol |
| Pattern | 5 Patterns |
| Power Off Memory | Support |
| Park Action | Preset, Patrol, Pattern, Pan Scan, Tilt Scan, Frame Scan, Random Scan, Panorama Scan |
| PTZ Position Display | On/Off |
| Preset Freezing | Support |
| Input/Output | |
| Monitor Output | 1 HD-TVI Output (Composite, BNC) |
| RS-485 Interface | Half Duplex Mode, Self Adaptive Hikvision, Pelco-P, Pelco-D Protocol |
| UTC Function | Self Adaptive Pelco_C, Hikvision_C (Need UTC Controller) |
| General | |
| Power | AC24V, Max 20W |
| Working Temperature | 22°-122°F |
| Mounting | Various Mounting Modes (Optional) |
| Dimensions | 6.5" x 7.1" |
| Weight | Approx 5 LBS |
