| Product Highlights | |
| Technology | HD-TVI |
| Resolution | 2MP/1080p |
| Lens | 2.8mm |
| Camera Features | Outdoor |

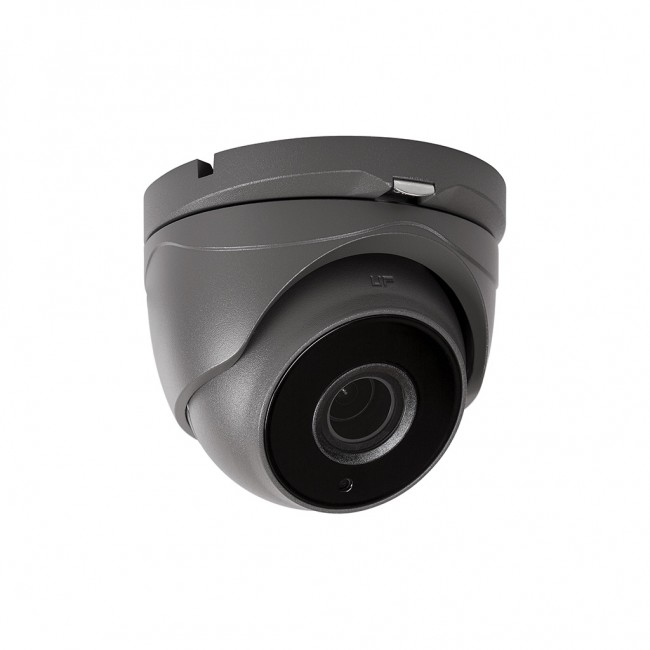

- HD Over Coax IR Eyeball
- Switchable TVI, AHD, CVI, CVBS
- Starlight Low-Light Technology
- 2MP (1920x1080 Resolution)
- 2.8mm Fixed Lens
- EXIR Technology With Smart IR
- Approx 65 FT IR Range
- 120dB WDR
- 3 Axis Design
- DC12V
Details
| MODEL | AC344-MD-2.8-G |
| Camera | |
| Image Sensor | 2MP Progressive Scan CMOS |
| Effective Pixels | 1920 (H) x 1080 (V) |
| Min. Illumination | 0.005 Lux @ (F1.8, AGC On), 0.0 Lux with IR |
| Shutter Time | 1/30 Sec to 1/50,000 Sec |
| Lens | 2.8mm Fixed Lens, Angle of View 102° |
| WDR | 120dB |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° - 340°; Tilt: 0° - 75°; Rotate: 0° - 355° |
| Video Frame Rate | 1920x1080 @ 30FPS |
| HD Video Output | 1 Analog HD Output |
| Menu | |
| Privacy Mask | On/Off, 4 programmable privacy masks |
| AGC | Support |
| Slow Shutter | Max 16 times |
| White Balance | ATW, Manual |
| Motion Detection | 4 programmable motion areas |
| Backlight Compensation | WDR, BLC, HLC, Off |
| Functions | Brightness, Sharpness, Mirror, Smart IR |
| UTC Function | Support |
| General | |
| Working Temperature | -40°F - 140°F |
| Power Supply | DC12V |
| Power Consumption | Max 7W |
| Ingress Protection | IP67, IK8 |
| IR Range | Approx 65FT |
| Dimensions | 3.58" x 2.69" |
| Weight | Approx 2 LBS |
