| Product Highlights | |
| Technology | HD-TVI |
| Lens | 3.6mm |
| Camera Features | Outdoor |

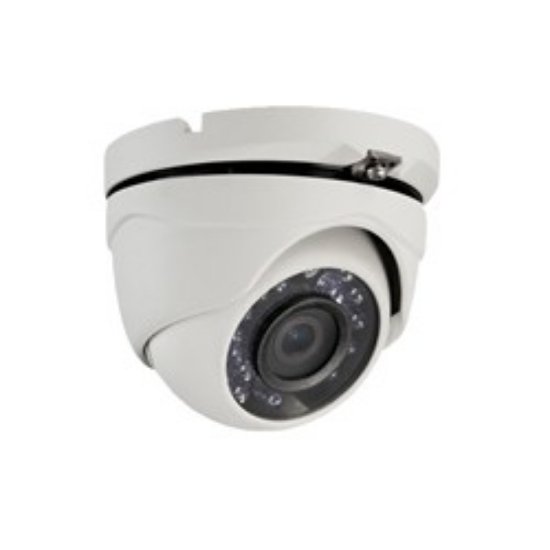

- HD-TVI Outdoor IR Eyeball
- 1080P (1920x1080 Resolution)
- 3.6mm Fixed Lens
- Approx 60 FT IR Range
- IP66 Rated, 3 Axis
- DC12V
Details
| MODEL | AC324-MD |
| Camera | |
| Image Sensor | 2MP CMOS Image Sensor |
| Effective Pixels | 1920 (H) x 1080 (V) |
| Min. Illumination | 0.01 Lux @ (F1.2, AGC On), 0.0 Lux with IR |
| Shutter Time | 1/25 Sec to 1/50,000 Sec |
| Lens | 3.6mm Lens, Angle of View 83° |
| Lens Mount | M12 |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° - 360°; Tilt: 0° - 75°; Rotate: 0° - 360° |
| Video Frame Rate | 1080P @ 30 FPS |
| HD Video Output | 1 Analog HD Output |
| General | |
| Working Temperature | -4°-113°F |
| Power Supply | DC12V |
| Power Consumption | Max 5W |
| Protection Level | IP66 |
| IR Range | Approx 60FT |
| Dimensions | 3.53" x 2.33" |
| Weight | Approx 2 LBS |
