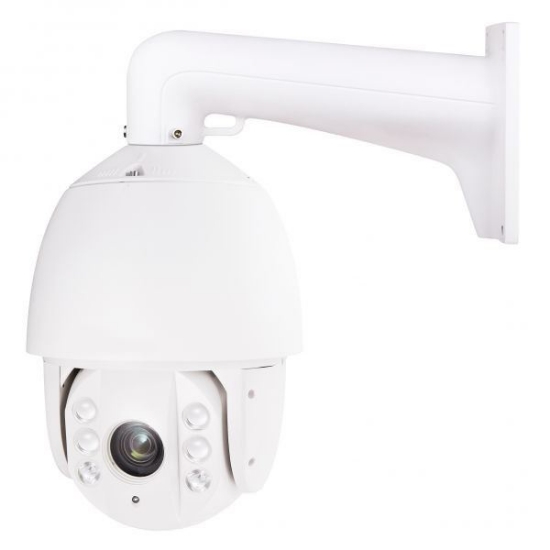

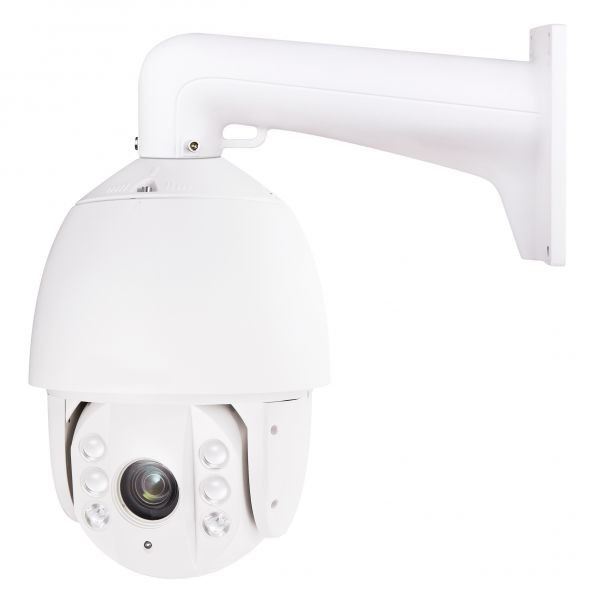

720P HD-TVI PTZ Dome IR Camera 23X Zoom (PTZH773X23IR)

SKU: 121692
MPN: PTZH773X23IR
$689.95
$595.99
PTZH773X23IR, HD-TVI 720p High speed PTZ Dome Camera, With HD 720p picture resolution, 23X Optical zoom and 16X Digital zoom, 1.3MP PTZ Camera with IR night vision with D-WDR and many other features.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or
Chat Live (Mon–Fri 8am–6pm CT)
  • 1.3MP CMOS Image Sensor
  • 720P HD Video Output
  • IR Distance 394ft (120m)
  • 23X optical zoom, 16X digital zoom
  • OSD Menu via UTC technology
  • Privacy Masking, 3D DNR, D-WDR, EIS
  • 3D intelligent positioning
  • True Day&Night



PTZH773X23IR HD-TVI IR PTZ Camera
Image Sensor  1 / 3"Sensor
Effective Pixel 1490K
Horizontal Resolution 950TVL
Signal System PAL / NTSC
Min. Illumination Color: 0.2Lux@( F1.6,AGC ON)
B / W: 0.02Lux@( F1.6,AGC ON)
White Balance Auto / Manual / ATW / Indoor / Outdoor
AGC Auto / Manual
S / N Ratio ≥ 50dB
3D DNR Support
Digital WDR Support
EIS Support
Backlight compensation Support
Shutter Time 1-1/10,000s
Day & Night IR Cut Filter
Digital Zoom 16X
Privacy Mask 8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen
Focus Mode Auto / Semiautomatic / Manual
Lens
Focal Length 4-92mm, 23X
Zoom Speed Approx.4.0s(Optical Wide-Tele)
Angle of View 49-2.2 degree(Wide-Tele)
Min. Working Distance 10-1000mm (Wide-Tele)
Aperture Range F1.6-F3.7
Pan and Tilt
Pan / Tilt Range Pan: 360° endless; Tilt: -15° ~ 90° (Auto Flip )
Pan / Tilt Speed Pan Manual Speed: 0.1° ~160°/s, Pan Preset Speed: 240°/s
Tilt Manual Speed: 0.1° ~120°/s, Tilt Preset Speed: 200°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset 256
Patrol 8 patrols, up to 32 presets per patrol
Pattern 4 patterns, with the total recording time not less than 10 minutes
Power-off Memory Support
Park Action Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
PTZ Position Display On / Off
Preset Freezing Support
Scheduled Task Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
RS-485 communication
diagnosis
Support
Infrared
IR Distance 394ft(120m)
IR Intensity  Automatically adjusted, depending on the zoom ratio
Input/ Output
Monitor Output 1 HD TVI output , (1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC)
RS-485 Interface Half-duplex mode, Pelco-P, Pelco-D protocol
UTC function Self-adaptive PELCO_C
General
Menu Language English, Chinese
Power  24VAC;  Max. 20W (Heater On), Max. 12W(Heater Off);
Working Temperature -22°F-149°F(-30 °C-65°C)
90% or less
Protection Level IP66 standard
TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimension  Φ8.66"×13.91"(Φ220×353.4mm)
Weight (approx.) 12.13Ibs(5.5kg)
Write your own review
  • Bad
  • Excellent
Products specifications
Camera Features WDR
Resolution 1MP/720p
Camera Features Outdoor
Technology HD-TVI
