| Product Highlights | |
| Technology | IP/Network |
| Resolution | 6MP |
| Camera Features | Outdoor |

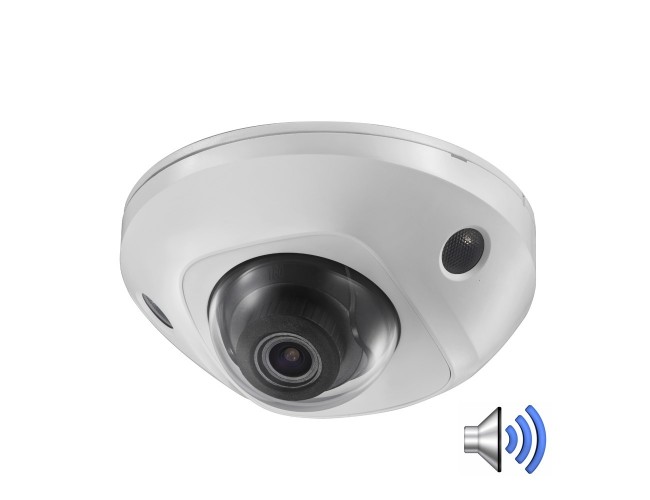

- IP Outdoor Compact Dome
- H.265+ Video Compression
- Intrusion Detection
- Line Crossing Detection
- 6MP (3072x2048) Resolution
- 4mm Fixed Lens
- Approx. 30 FT IR Range
- 120dB WDR
- Built-in Microphone
- Vandal Resistant, 3 Axis Design
- DC12V, PoE ,
- 90 Day Warranty
Details
| MODEL | NC326-WDA |
| Camera | |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC On), 0.0 Lux with IR |
| Shutter Speed | 1/3 sec to 1/100,000 sec |
| Lens | 4mm @ F2.0, Angle of View: 98° |
| Lens Mount | M12 |
| Angle Adjustment | Pan: -30° to 30°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | 120dB |
| Compression Standard | |
| Video Compression | H.265+/H.264+ |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps - 16 Mbps |
| Bit Rate Control | CBR/VBR |
| Image | |
| Max. Resolution | 3072 x 2048 |
| Frame Rate | 20FPS (3072x2048, 3072x1728), 30FPS (2560x1440, 1920x1080) |
| Day/Night Switch | Day, night, auto, schedule |
| Image Enhancements | BLC, 3D DNR |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G), ISAPI |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, user |
| Security | Password protection, https encryption, IP address filter |
| General | |
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Supply | 12VDC, PoE (802.3af) |
| Power Consumption | Max. 10W |
| Ingress Protection | IP67, IK10 |
| IR Range | Approx. 30 FT |
| Dimension | 4.33" x 2.25" |
| Weight | 2 LBS |
