| Product Highlights | |
| Technology | IP/Network |
| Resolution | 4MP |
| Camera Features | Outdoor |

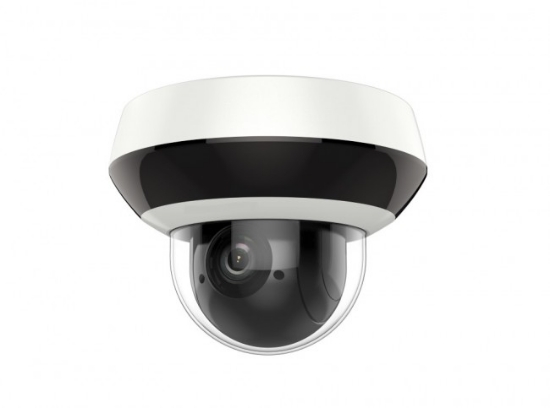

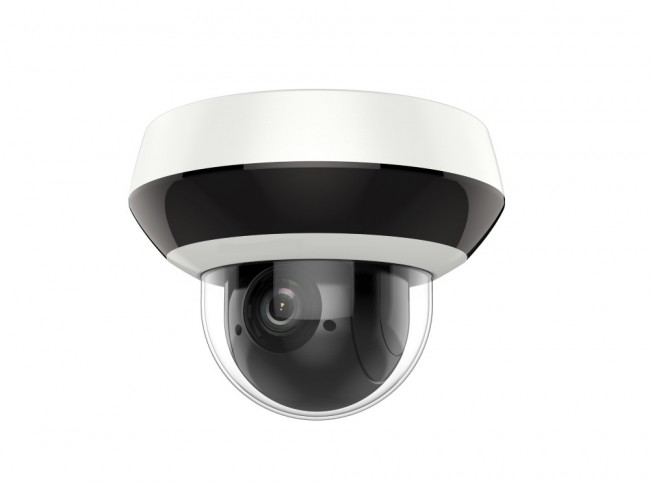

- Network Indoor IR Compact PTZ
- H.265+ Video Compression
- 4MP (2560x1440) Resolution
- 4x Optical Zoom, 16x Digital Zoom
- Approx 65FT IR Range
- 120dB WDR, IP66 Rated
- Built-in Micro SD Card Slot
- PoE, DC12V
Details
| Model | GNP114-IR/4X |
| Camera | |
| Max Resolution | 2560 x 1440 |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 Lux @ (F1.5, AGC On), 0.0 Lux with IR |
| Shutter Speed | 1/1 sec to 1/30,000 sec |
| Day/Night | IR Cut Filter |
| WDR | 120dB |
| Main Stream | 60Hz: 30FPS (2560x1440, 1920x1080, 1280x960) |
| Sub-Stream | 60Hz: 30FPS (704x480, 640x480, 352x240) |
| Video Compression | H.265+/H.264+ |
| Lens | |
| Zoom | 4x Optical, 16x Digital |
| Focal Length | 2.8mm to 12mm |
| Zoom Speed | Approx 2 sec |
| Field of View | Horizontal FOV: 96.7° to 31.6° (wide-tele) Vertical FOV: 51.1° to 17.7° (wide-tele) Diagonal FOV: 115° to 36.3° (wide-tele) |
| Aperture | F1.5 |
| Focus | Auto, semi-auto, manual |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Approx 65FT |
| PTZ | |
| Movement Range (Pan) | 180° |
| Movement Range (Tilt) | 0° to 90° |
| Pan Speed | Configurable 0.1° to 100°/sec; Preset Speed: 100°/sec |
| Tilt Speed | Configurable 0.1° to 100°/sec; Preset Speed: 100°/sec |
| Presets | 300 |
| Interface | |
| Ethernet | 1 RJ45 10M/100M self adaptive |
| On-board Storage | Built-in memory card slot, up to 256GB |
| Built-in Microphone | Yes |
| Audio | 1 input (line in); 1 output (line out) |
| Hard Reset | Yes |
| Network | |
| Simultaneous Live View | Up to 20 channels |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, user |
| Security | Password protection, complicated password, https encryption, IP address filter |
| General | |
| Working Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Power | PoE (802.3af), Max 10W |
| Protection Level | Lightning protection, surge protection, voltage transient protection, IP66 |
| Dimension | 5.15" x 4" |
| Weight | Approx 5 LBS |
