| Product Highlights | |
| Technology | IP/Network |
| Resolution | 4MP |
| Lens | Motorized Lens |
| Camera Features | Outdoor |

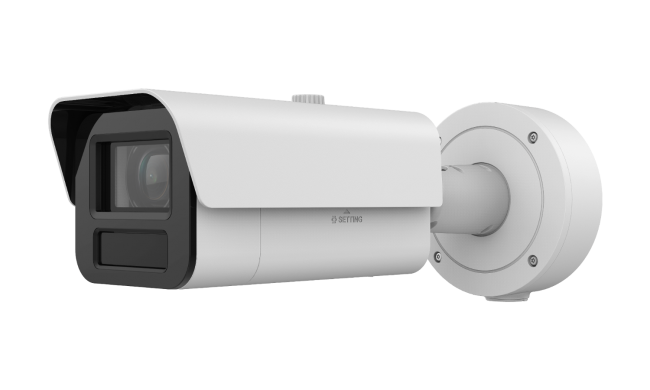

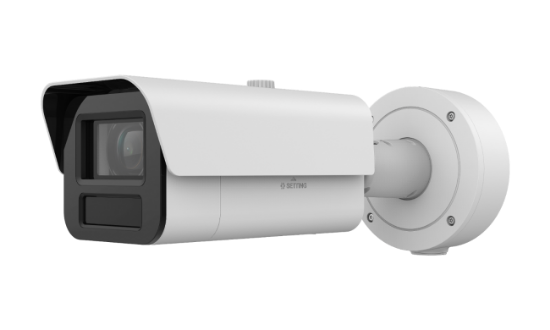

- Long Range IP Outdoor EXIR Bullet
- DarkFighter Ultra Low Light
- 4MP (2688x1520) Resolution
- 4.7-118mm Motorized Zoom Lens
- 25x Optical Zoom
- Approx.656 FT IR Range
- 140dB WDR
- IP67 Rated Weatherproof
- DC12V, PoE
Details
| MODEL | GNC512-VBZ118 |
| Camera | |
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Min. Illumination | Color 0.009 Lux @ (F1.6, AGC On), 0.0 Lux with IR |
| Shutter Speed | 1 sec ~ 1/30,000 sec |
| Lens | 4.7-118mm @ F1.6 |
| Lens Mount | AF Automatic Focusing and Motorized Zoom Lens |
| Iris Type | P-iris |
| Day & Night | IR Cut Filter |
| Wide Dynamic Range | 140dB |
| Compression Standard | |
| Video Compression | H.265+/H.264+ |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps - 8 Mbps |
| Bit Rate Control | CBR/VBR |
| Region of Interest (ROI) | 4 fixed regions |
| Image | |
| Max. Resolution | 2688 x 1520 |
| Frame Rate | 60Hz: 30 FPS (2688x1520, 2560x1440, 1920x1080, 1280x720) |
| Day/Night Switch | Auto, schedule |
| Image Enhancements | BLC, HLC, 3D DNR |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness |
| Network | |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (Profile S, Profile G), ISAPI, SDK |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, user |
| Security | Password protection, complicated password, https encryption, IP address filter |
| General | |
| Protection Level | IP67 |
| IR Distance | Approx 656FT |
| Operating Conditions | -30°C ~ 60°C (-40°F ~ 140°F) |
| Power Supply | 12VDC, PoE (802.3at) |
| Power Consumption | Max. 20W |
| Dimension | 5.7" x 14.9" |
| Weight | 5 LBS |
