| Product Highlights | |
| Technology | IP/Network |
| Resolution | 4K 8MP |
| Camera Features | 360 FishEye |

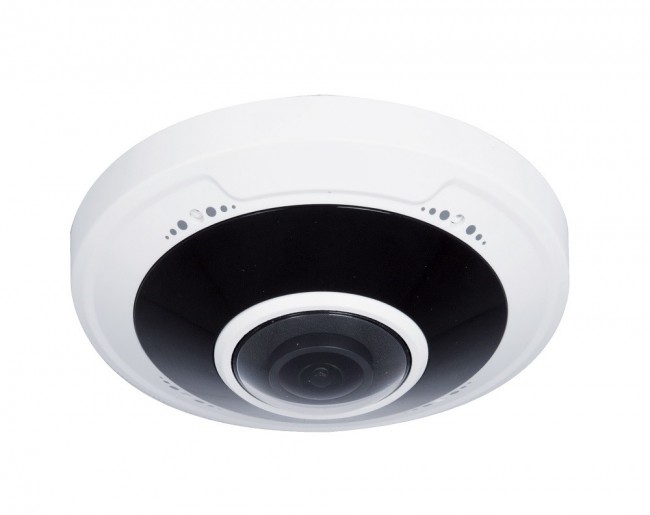

- 4K Fisheye Camera
- 360° Panoramic View
- Ultra H.265 CODEC
- 4K (4000x3000) Resolution
- Approx 30FT IR Range
- Digital WDR
- Built-in Micro SD Card Slot
- PoE, DC12V
- Not Compatible with GNR Series NVRs
Details
| Model | GSNCA08 |
| Camera | |
| Image Sensor | 1/1.7" Progressive Scan CMOS |
| Min. Illumination | Color 0.05 Lux @ (F2.4, AGC On), 0.0 Lux with IR |
| Lens | 1.8mm Lens |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | Digital WDR |
| Shutter Time | 1 Sec - 1/100,000 Sec |
| Compression Standard | |
| Video Compression | Ultra H.265, H.265, H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | 128 Kbps - 16 Mbps |
| Image | |
| Max. Image Resolution | 4000 x 3000 |
| Frame Rate | Main Stream: 4000x3000, Max 15FPS; 2560x2560, Max 25FPS Sub Stream: 2000x1500, 2000x2000, Max 15FPS |
| Network | |
| Security Measures | User Authentication (ID & PW), Host Authentication (MAC Address), IP Address Filtering |
| User/Host | Up To 32 Users |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP |
| System Compatibility | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host Level | Up To 32 Users, 3 Levels: Administrator, Operator, User |
| Interface | |
| Communication Interface | (1) RJ45 10/100 M Ethernet Interface |
| General | |
| Operating Conditions | -31°F ~ 140°F |
| Power Supply | 12VDC, PoE, Max 12W |
| IR Range | Approx 30FT |
| Dimension | 5.87" x 2.17" |
| Weight | Approx 2 LBS |
