| Product Highlights | |
| Number of Channels | 32Ch |
| Technology | HD-TVI, Hybrid |

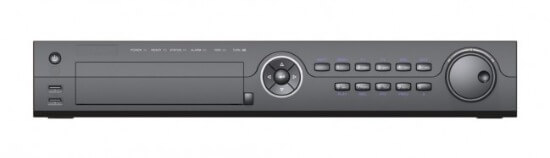

GN-DVR-S3M32/4-U 32-Channel 4K Ultra HD DVR — A powerful enterprise-grade surveillance solution supporting HD-TVI, CVI, AHD, Analog (CVBS), and IP cameras. Records up to 8MP resolution with advanced H.265 Pro+ video compression and supports expansion to up to 64 IP cameras. Featuring dual Gigabit network connections, independent HDMI/VGA outputs, and up to 40TB of storage, this system is built to deliver maximum coverage, high-resolution video, and reliable performance for businesses and large commercial properties. Remote viewing and management are available through the Guarding Vision mobile app.
- • 32CH HD Over Coax DVR
• TVI, CVI, AHD, CVBS, IP Camera Support
• H.265 Pro+ Video Compression
• 8MP @ 8FPS Recording Per Channel
• 5MP @ 12FPS Recording Per Channel
• Connect Up To 64 IP Cameras
• 4 SATA Interface, Max 40TB HDD
• 2 HDMI, 1 VGA Independent Outputs
• CVBS BNC Spot Output
• Dual Gigabit Network Cards
• Guading Vision Mobile AppMODEL DVR-S3M32/4-U Video/Audio Input Video Compression H.265 Pro+/H.264+ Analog Video Input 32CH HDTVI Input 8MP, 5MP, 4MP, 2MP AHD Input 5MP HDCVI Input 4MP CVBS Input Support IP Video Input 32CH, Up to 64 IP cameras Network Bandwidth 320 Mbps Audio Input 4CH, RCA Video/Audio Output HDMI 1/VGA Output 1CH, 1920x1080, 1280x1024, 1280x720, 1024x768 HDMI 2 Output 1CH, 3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768 CVBS Output 1CH BNC, 704x480 Encoding Resolution 8MP, 5MP, 4MP, 2MP, CVBS Frame Rate 8MP@8FPS, 5MP@12FPS, 4MP@15FPS, 2MP@30FPS Video Bitrate 32 Kbps-10 Mbps Audio Output 2CH, RCA Network Management Remote Connections 128 Network Protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SMTP, HTTPS HDD SATA 4 SATA Interfaces Capacity Up to 10TB for each disk External Interface Network Interface 2, RJ45 10/100/1000M Self Adaptive USB Interface 2 x USB 2.0, 1 x USB 3.0 Serial Interface RS-485, RS-232 Alarm in/out 16/4 General Power Supply 100 to 240VAC Consumption (Without HDD) Approx 75W Working Temperature 14°F ~ 120°F Chasis 19" Rack Mounted 1.5U Chassis Dimension Approx 17.5" x 15.5" x 3" Weight Approx 20 LBS
Only registered users can write reviews
