| Product Highlights | |
| Technology | IP/Network |
| Resolution | 2MP/1080p |
| Camera Features | Outdoor |

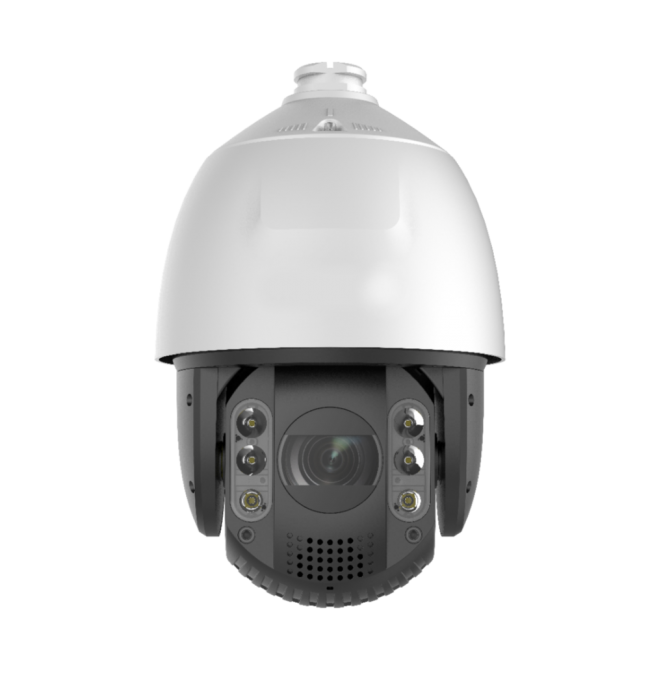

- DarkFighter Low Light PTZ
- Smart Tracking, Auto Tracking
- Smart Human And Vehicle Detection
- Smart Perimeter Protection
- 2MP (1920x1080P) Resolution
- 25x Optical Zoom,16x Digital Zoom
- H.265+ Video Compression
- Approx. 650FT IR Range
- Built-in Micro SD Card Slot
- 120dB WDR, IP67 Rated
- AC24V, Hi-PoE
- WMP-L Wall Mount Included
Details
| Model | GNP322-IR/25X |
| Camera | |
| Max Resolution | 1920 x 1080 |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC On), 0.0 Lux with IR |
| Shutter Speed | 1/1 sec to 1/30,000 sec |
| Day/Night | IR Cut Filter |
| WDR | 120dB |
| Main Stream | 60Hz: 30FPS (1920x1080, 1280x960) |
| Sub-Stream | 60Hz: 30FPS (704x480, 640x480, 352x240) |
| Video Compression | H.265+/H.264+ |
| Video Bit Rate | 32kbps to 16384kbps |
| Lens | |
| Zoom | 25x Optical, 16x Digital |
| Focal Length | 4.8mm to 120mm |
| Zoom Speed | Approx 3.6 sec |
| Field of View | Horizontal FOV: 57.6° to 2.5° (wide-tele) Vertical FOV: 34.4° to 1.4° (wide-tele) Diagonal FOV: 64.5° to 2.9° (wide-tele) |
| Aperture | F1.6 |
| Focus | Auto, semi-auto, manual |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Approx 656FT |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Pan Speed | Configurable 0.1° to 160°/sec; Preset Speed: 240°/sec |
| Tilt Speed | Configurable 0.1° to 120°/sec; Preset Speed: 200°/sec |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Interface | |
| Ethernet | 1 RJ45 10M/100M self adaptive |
| On-board Storage | Built-in memory card slot, up to 256GB |
| Alarm | 2 inputs, 1 outputs |
| Audio | 1 input (line in); 1 output (line out) |
| Hard Reset | Yes |
| Network | |
| Simultaneous Live View | Up to 20 channels |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, user |
| Security | Password protection, complicated password, https encryption, IP address filter |
| General | |
| Working Temperature | -30°C ~ 65°C (-22°F ~ 149°F) |
| Power | Hi-PoE, Max 42W |
| Protection Level | Lightning protection, surge protection, voltage transient protection, IP66 |
| Dimension | 8.66" x 14.3" |
| Weight | Approx 15 LBS |
