| Product Highlights | |
| Technology | IP/Network |
| Lens | Motorized Lens |
| Camera Features | Outdoor |

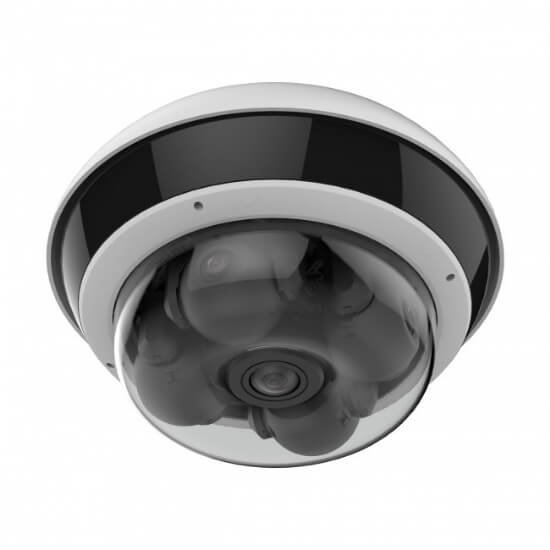

- PanoVu 5-Directional Multisensor
- 4 x 5MP (2560x1920)
- 4 x 2.8-8mm Motorized Lens
- 1 x 2MP (1440x1440)
- 1 x 2mm Fixed Lens
- Remote PTRZ Lens Adjustments
- IP67 Rated, IK10
- 120dB WDR
- 100FT IR Range
- 6 Behavior Analysis
- Built-in MicroSD Card Slot
- Hi-PoE
- ,
Pendant Cap Included
Details
| MODEL | GNC6D55-IZS |
| Camera | |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 Lux @ (F1.2, AGC On), 0 Lux with IR |
| Shutter Speed | 1 sec - 1/100,000 sec |
| Day & Night | IR Cut Filter |
| Wide Dynamic Range | 120dB |
| Angle Adjustment | Pan: 0° to 350°, Tilt: 0° to 90°, Rotate: -90° to 90° |
| Lens | |
| Lens Type | 4 x 2.8-8mm motorized, 1 x 2mm fixed |
| Focal Length & FOV | 2.8-8mm: Horizontal FOV 96.5° to 48.9°, Vertical FOV 69.9° to 36.5°, Diagonal FOV 129° to 61.3° 2mm: Horizontal FOV 71.68°, Vertical FOV 71.68°, Diagonal FOV 99.16° |
| Aperture | Motorized: F1.9, Fixed: F2.25 |
| Focus | Motorized: Semi-auto, Manual |
| Compression Standard | |
| Video Compression | H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps - 8 Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/AAC/PCM |
| Video | |
| Main Stream | Channel 1, 2, 3, 4: 60Hz: 30 fps (2560x1920, 2048x1536, 1920x1080) Channel 5: 60Hz: 30 fps (1440x1440) |
| Sub Stream | Channel 1, 2, 3, 4: 60Hz: 30 fps (704x480, 640x480) Channel 5: 60Hz: 30 fps (576x576, 480x480) |
| Day/Night Switch | Day, night, auto, schedule, triggered by alarm in |
| Image Enhancements | BLC, 3D DNR, EIS |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness |
| Network | |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (Profile S, Profile G), ISAPI |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, user |
| Security | Password protection, https encryption, IP address filter |
| Interface | |
| Ethernet | 1 RJ45 10/100/1000M self adaptive |
| Audio | 1 input (line in, 3.5mm), 1 output (line out, 3.5mm) |
| Communication | 1 RJ45 10/100/1000M self adaptive |
| Alarm | 2 inputs, 2 outputs (max 24VDC, 1 Amp) |
| On-Board Storage | Built-in Micro SD/SDHC/SDXC Slot, Up To 128GB |
| General | |
| Impact Protection | IP67, IK10 |
| Operating Conditions | -40°C - 60°C (-40°F - 140°F), Humidity 95% or less (non-condensing) |
| Power Supply | 12VDC / PoE (802.3at) |
| Power Consumption | Hi-PoE, 38W |
| Dimensions | 11.42" x 5.8" |
| Weight | Approx 12 LBS |
