| Product Highlights | |
| Technology | IP/Network |
| Camera Features | Outdoor |

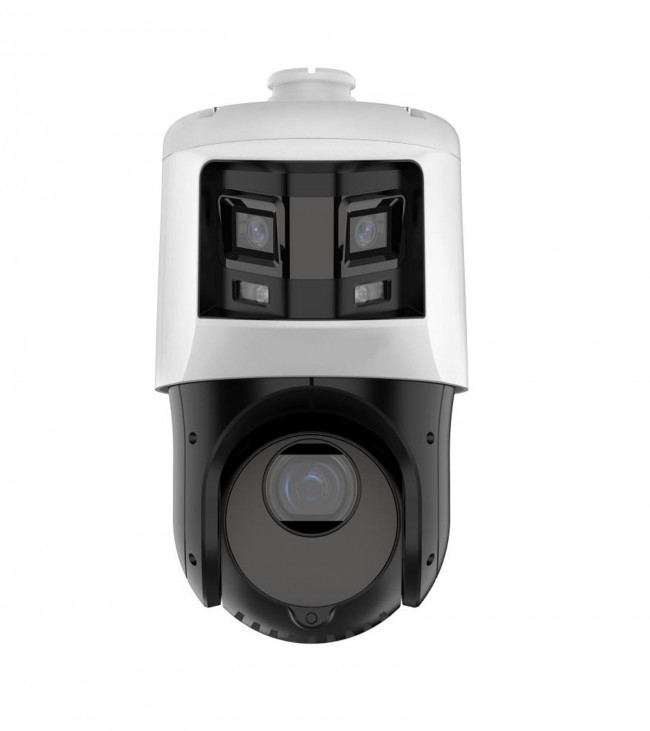

- Colorvu TandemVu Speed Dome
- Human And Vehicle Detection
- PTZ Channel: 4MP (2560x1440)
- Bullet Channel: 8MP (3840x2160)
- PTZ Channel: 25x Optical Zoom
- Bullet Channel: 180° Panoramic
- PTZ Channel: 328FT IR Range
- Bullet Channel: 100FT White Light Range
- Built-in Micro SD Card Slot
- 120dB WDR, IP66 Rated
- DC12V, PoE+
- Wall Mount Included
Details
| Model | GNPB128P-IR/25X |
| Camera | |
| Max Resolution | (Bullet channel): 3840 x 2160 (PTZ channel): 2560 x 1440 |
| Image Sensor | (Bullet channel): 1/3" progressive scan CMOS (PTZ channel): 1/2.8" progressive scan CMOS |
| Min. Illumination | (Bullet channel): 0.0005 Lux @ (F1.0, AGC On), 0 Lux with light (PTZ channel): Color: 0.005 Lux @ (F1.6, AGC On), 0 Lux with IR |
| Shutter Speed | 1 sec to 1/30,000 sec |
| Day/Night | IR Cut Filter |
| WDR | 120dB |
| Main Stream | (Bullet channel): 20FPS (3840x2160) (PTZ channel): 30FPS (2560x1440) |
| Sub-Stream | 30FPS (704x480, 640x480, 352x240) |
| Video Compression | H.265+/H.264+ |
| Video Bit Rate | 32kbps to 16384kbps |
| Lens | |
| Focal Length | (Bullet channel): 2 x 4mm; (PTZ channel): 4.8mm to 120mm, 25x Optical |
| Zoom Speed | (PTZ channel): Approx 3.6 sec |
| Field of View | (Bullet channel): 180° (PTZ channel): 61.5° to 2.8° (wide-tele) |
| Aperture | (Bullet channel): F1.0; (PTZ channel): F1.6 |
| Illuminator | |
| Supplement Light Type | (Bullet channel): white light; (PTZ channel): IR |
| Supplement Light Range | (Bullet channel): 100FT; (PTZ channel): 328FT |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Pan Speed | Configurable 0.1° to 80°/sec; Preset Speed: 80°/sec |
| Tilt Speed | Configurable 0.1° to 80°/sec; Preset Speed: 80°/sec |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Interface | |
| Ethernet | 1 RJ45 10M/100M self adaptive |
| On-board Storage | Built-in memory card slot, up to 256GB |
| Alarm | 1 input, 1 output |
| Audio | 1 input (line in); 1 output (line out) |
| Hard Reset | Yes |
| Network | |
| Simultaneous Live View | Up to 20 channels |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, user |
| Security | Password protection, complicated password, https encryption, IP address filter |
| General | |
| Working Temperature | -30°C ~ 65°C (-22°F ~ 149°F) |
| Power | PoE+, 24W |
| Protection Level | Lightning protection, surge protection, voltage transient protection, IP66 |
| Dimension | 6.5" x 11.9" |
| Weight | Approx 15 LBS |
